Document ID: BMOE-42RLG8 |
TP 365C/CD/CS/CSD/E/ED - Rear View
Applicable to: World-Wide

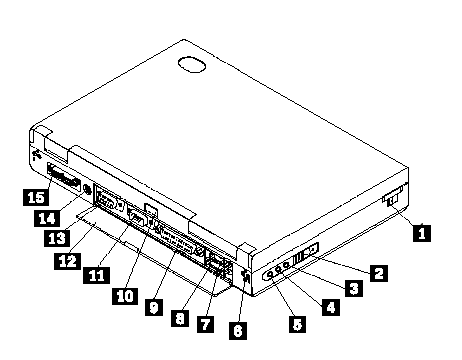

Rear View:
|
1 |
LCD and Keyboard Latch |
|
2 |
Power Switch |
|
3 |
Microphone/Line-In Jack |
|
4 |
Line-in Jack |
|
5 |
Line-out Headphone Jack |
|
6 |
Power Jack |
|
7 |
MIDI/Joystick Port |
|
8 |
External Diskette Drive Connector |
|
9 |
Parallel Connector |
|
10 |
Infrared (IR) Port |
|
11 |
Serial Connector |
|
12 |
Rear Door |
|
13 |
External Display Connector |
|
14 |
External Keyboard/Mouse Connector |
|
15 |
Port Replicator Connector |
|
