Parts Information |
Document ID: BMOE-423PSZ |
TP 390,1720 - TFT LCD FRU parts list (12.1")
Applicable to: World-Wide

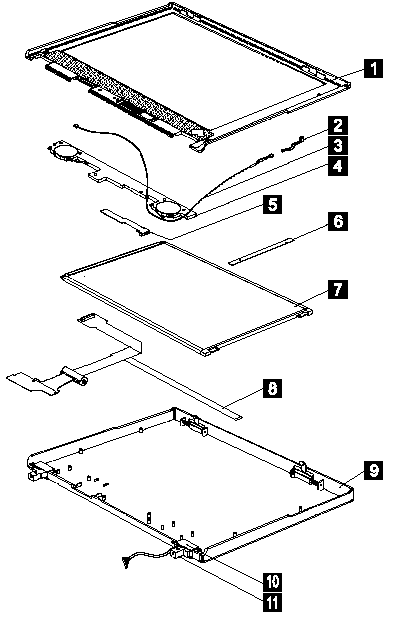

LCD FRU (TFT) - 12.1-Inch TFT
|
Index |
System Unit |
FRU |
|
1 |
LCD BEZEL ASM (12.1" TFT) |
05K5469 |
|
2 |
MICROPHONE ASM W/ HOLDER |
05K5477 |
|
3 |
CABLE ASM FOR SPK/MIC/VR BOARD |
05K2818 |
|
4 |
SPEAKER ASM (12.1"/13.3") |
05K5467 |
|
5 |
VR BOARD ASM (12.1"/13.3") |
10L1204 |
|
6 |
LCD INVERTER (12.1" TFT) |
10L1151 |
|
7 |
LCD PANEL ASM (12.1" TFT) |
05K9370 |
|
8 |
LCD FPC ASM (12.1" TFT) |
05K2761 |
|
9 |
LCD REAR COVER ASM (12.1" TFT) |
05K5462 |
|
10 |
HINGE CAP L,R (12.1"/13.3") |
05K5466 |
|
11 |
HINGE L,R (12.1"/13.3") |
05K5465 |
|
LCD MISC PARTS |
05K5488 | |
|
LG/IBM Logo Kit |
05K6044 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Manuals | |
|
Date Created |
09-11-98 | |
|
Last Updated |
05-01-99 | |
|
Revision Date |
05-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 390, ThinkPad i Series 172x | |
|
Machine Type |
2626, 2627 | |
|
Model |
Various | |
|
