Service Hints & Tips

Document ID: GSMH-3BDEJ9

TP 360,355,370,750,755 - Common/Option Parts List

Applicable to: World-Wide

Common/Option Parts List:

Miscellaneous Parts

AC Adapter (35 W, 3-pin)

85G6689

For Japan (2-pin)

85G6669

AC Adapter (40 W, 3-pin)

49G2196

For Japan (2-pin)

49G2197

AC Adapter (40 W, 3-pin, U.S. only)
(not for 370C)

84G4320

Foot (right or left)

84G4326

Miscellaneous Parts Kit
(Includes DC-in holder, spacer, warning label)

For Models 750x

66G5039

For Models 355x, 360x, 370C, 755C, 755Cs

84G2254

PC Card Locking Bar

85G8625

Screw Kit
(Includes:
10-2.5 x 4 mm; 10-2.5 x 6 mm
10-2.5 x 8 mm, Flat head
10-2.5 x 8 mm; 10-2.5 x 16 mm
10-hex stud I/O; 10-hex stud bus
2-washer for hex stud bus)

66G5124

IC DRAM. Eject Tape

53G9318




Options:

Notes:
1. When you replace the AC adapter or the Quick Charger with a new one, use the one for the country you are in even if the system is from different country.
2. The warranty for the system unit is not applied to all options.

Audio Cable

66G5180

Car Battery Adapter
(48G9203 label sealed)

49G1148

Car Battery Adapter
(66G9984 label sealed)

84G4359

Diskette Drive Attachment Unit

66G5069

IC DRAM 2MB

07G1414

IC DRAM 4MB

07G1415

IC DRAM 8MB

07G1416

IC DRAM 16MB

66G0094

Microphone

66G7871

PS/2 Miniature Mouse

95F5723

Port Replicator

66G3575

Port Replicator with PCMCIA

66G3574

Quick Charger (3-pin)

66G2815

For Japan (2-pin)

66G2816


Model Unique Options:

Models 355x, 360x, 370C

Basic IC DRAM. (no parity)

8MB

84G5725

4MB

84G5724

16MB

84G5726

Internal Modem Card

84G5917

(U.S./Canada/Latin America)
Telephone Cable

84G8254

(U.S./Canada/Latin America)
Telephone Wall Plug

85G2367


Model 370C

Audio Card

66G5037

Basic IC DRAM. (no parity)

8MB

84G5725

4MB

84G5724

16MB

84G5726

Diskette Drive (4-mode)
Supported in U.S. only.

66G5060



Models 750x

AC Adapter (35 W, 3-pin)

85G1952

For Japan (2-pin)

85G6669

AC Adapter (40 W, 3-pin, U.S. only)

84G4320

AC Adapter (40 W, 3-pin)

49G2196

For Japan (2-pin)

49G2197


Models 755C, 755Cs:

DIMM 4MB

84G4323

DIMM 8MB

84G6545

DIMM 16MB

84G4324

DIMM Adapter Card

84G4322

Diskette Drive (4-mode)
Supported in U.S. only.

66G5060




Numeric Keypad:

Belgian

95F5741

Canadian French

95F5466

Danish

95F5467

Dutch

95F5467

French

95F6313

German

95F6314

Greek

95F5467

Hebrew

95F5741

Icelandic

95F5467

Italian

95F6316

Japanese

79F6401

Norwegian

95F5467

Spanish

95F6315

Swedish/Finnish

95F5468

Swiss/French

95F5711

Swiss/German

95F5715

Turkish

95F5467

U.K. English

95F5741

U.S. English

95F5741


Accessories:

Keyboard/Mouse Cable

54G0444


Tools:

Tri-Connector Wrap Plug

72X8546

PC Test Card

35G4703

Screwdriver Kit

95F3598

ThinkPad 750Ce
Hardware Maintenance Diskette
(This diskette is common for all models of ThinkPad.)

82G3891

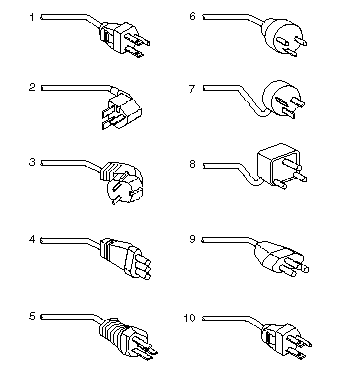

Power Cords:

Warning:
Use the power cord certified for your country.

1

Colombia, U.S., Venezuela

13F9959

25H2207

Japan, 2-pin

6454377

85G6665

Japan, 3-pin

65F0031

2

Hong Kong, Singapore, U.K.

14F0033

25H2215

3

France, Germany, Spain

13F9979

25H2209

4

Italy

14F0069

25H2223

5

Australia, New Zealand

13F9940

25H2205

6

Denmark

13F9997

25H2211

7

Israel

14F0087

25H2225

8

Bangladesh, Pakistan,Sri Lanka, South Africa

14F0015

25H22139

9

Switzerland

14F0051

25H2221

10

Thailand

1838574

25H2219



Notes:
- Models 370C, 755C, and 755Cs do not support the 30W AC adapter.
- The 30/40W cord is 6 foot long; the 35W cord is 6 inches.
