Service Hints & Tips |
Document ID: MCGN-3LRN68 |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
TP 365X/XD - ECA004 Mouse, dual button operation with single action - Expired
Applicable to: World-Wide
|
Record number: |
H121776 |
Service code: |
33 |
|
Device |
D/T2625 |
Parts source: |
LOC |
|
ECA number |
ECA004 |
Publishing flag: |
R |
|
EC number: |
EC999999 |
Hit count |
UHC00068 |
|
Mandatory: |
N |
Success count: |
USC0000 |
|
Automatic shipment: |
N |
Publication code: |
PC40 |
|
Availability date: |
97/09 |
Date created: |
O97/08/14 |
|
Plant of control: |
23 |
Date last altered: |
A97/09/25 |
|
Tip key: |
|
Owning B.U.: |
USA |
Purpose:
Replace the keyboard card assembly FRU for incorrect mouse button operation. When one mouse button is pressed a left and right mouse button result occurs.
Features:
|
Type, |
With B/M |
Machines Affected |
B/M to be |
Service |
System |
|
2625 |
B/M9999999 |
365X/XD Models: 1E9, 1F9, 2E9, 6B7, EBF, EEF, ELF, FE9, FF9, FR9, GE9, GF9 |
B/M9999999 |
00.8 |
00.6 |
Physical check:
2625 365 X and XD system must have the three following items to be eligible for this ECA:
1. This Bar code information on the bottom of the system.
x = any number or letter, and # can be 3 or 4.
2. Model number listed in the FEATURES Section of this ECA.

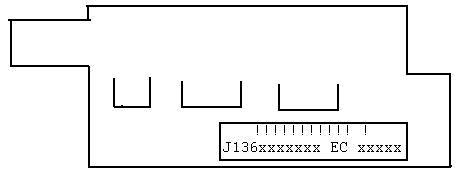

3. A Keyboard Card Assembly FRU P/N69H7913 that contains the following information on its bar code:
The bar code information is located on the keyboard card and can be seen below the keyboard connectors when the top cover is removed. x = any number or letter.
Prerequisites: NONE
Companion: NONE
Concurrent: NONE
Detail:
A small number of Keyboard card assembly FRUs may fail because of an incorrectly installed component on this FRU. A single mouse button depression, on systems with one of these FRUs, can cause a left and right mouse button action to occur.
This can result is unexpected information appearing on the display or unexpected program actions.
Systems with this condition require a Keyboard card replacement. Use keyboard card FRU P/N69H7913. All FRU stock of the early level keyboard card (same FRU part number) has been purged.
Notes:
This ECA will expire August 31, 1998. Order FRUs locally and record all time using Service Code 33, ECA004, other office 990.
|
Search Keywords |
| |
|
Hint Category |
Input Devices, ECA | |
|
Date Created |
09-09-97 | |
|
Last Updated |
12-04-99 | |
|
Revision Date |
12-04-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 365X/XD | |
|
Machine Type |
2625 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
H121776, ECA004 | |
|
Reverse Doclinks |
USA=A, EMA=A, AFE=A , Owning B.U.:USA , 3JYFA3 |
