Parts Information |
Document ID: BMOE-423J6G |

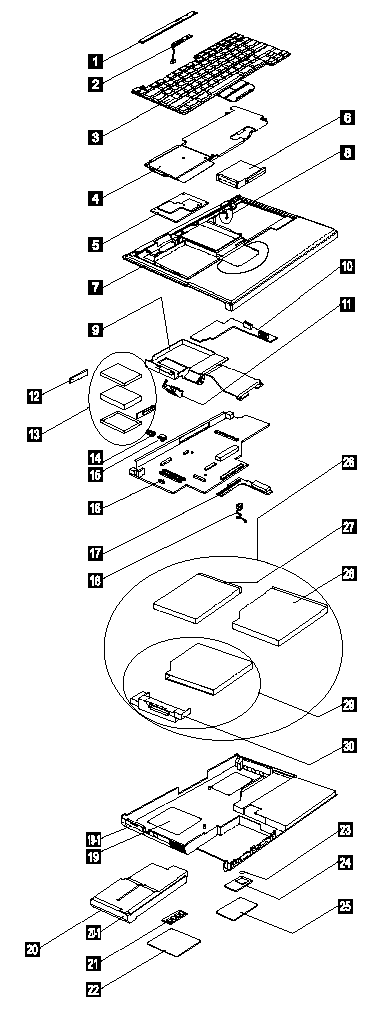

TP 390,1720 - FRU parts listing
Applicable to: World-Wide
|
Index |
Description |
FRUNumber |
|
1 |
MIDDLE COVER ASM |
05K5481 |
|
2 |
LED BOARD ASM W/ CABLE |
10L1154 |
|
3 |
See Keyboard list |
|
|
4 |
UPPER HEATSINK FOR TILLAMOOK |
05K5473 |
|
|
UPPER HEATSINK FOR DESCHUTES |
05K5474 |
|
5 |
CPU CARD (TM233, 280P) |
10L1199 |
|
|
CPU CARD (DS233, 280P) |
10L1200 |
|
|
CPU CARD (DS266, 280P) |
10L1201 |
|
6 |
PCMCIA HOLDER ASM |
05K5476 |
|
7 |
UPPER COVER ASM 12.1"/13.3" |
05K5478 |
|
|
UPPER COVER ASM 14.1" |
05K5946 |
|
8 |
LID SWITCH ASM |
05K5479 |
|
9 |
MMO LOWER HEATSINK ASM |
05K5475 |
|
10 |
DC-DC & BATT BOARD ASM |
02K6519 |
|
11 |
FAN ASM |
05K5468 |
|
12 |
HDD DOOR ASM |
05K5994 |
|
13 |
HDD ASM 3.2GB |
05K8932 |
|
|
HDD ASM 4.0GB |
05K8933 |
|
|
HDD KITTING PARTS ASM |
05K5916 |
|
|
HDD ADAPTER COMBO BAY ASM |
05K5525 |
|
14 |
BASE MISC PARTS |
05K5487 |
|
15 |
IR BOARD ASM |
10L1206 |
|
16 |
PLANAR (M/B) (W/O AGP) ASM FOR BT-1 |
10L1152 |
|
17 |
COMBO BAY INTERPOSER CARD ASM |
10L1156 |
|
18 |
MODEM CONNECTOR ASM |
05K2764 |
|
19 |
BASE COVER ASM FOR M/2626 |
05K5482 |
|
|
BASE COVER ASM FOR M/2627 |
05K6009 |
|
19-1 |
I/O DOOR |
05K5485 |
|
20 |
BATTERY (LIION) ASM |
02K6520 |
|
|
BATTERY (NIMH) ASM (PANASONIC) |
02K6521 |
|
|
BATTERY (NIMH) ASM (TOSHIBA) |
02K6537 |
|
20-1 |
BATTERY SLIDER COVER |
05K5942 |
|
21 |
32MB DIMM SDRAM |
10L1226 |
|
|
64MB DIMM SDRAM |
10L1227 |
|
22 |
DIMM DOOR ASM |
05K5484 |
|
23 |
RTC BATTERY |
02K6522 |
|
24 |
MODEM CARD ASM |
10L1155 |
|
25 |
MODEM DOOR ASM |
05K5483 |
|
26 |
COMBO CD-ROM + FDD ASM |
05K8935 |
|
|
COMBO FDD ASM |
05K8936 |
|
27 |
FDD ASM |
05K8978 |
|
28 |
CD-ROM ASM (TOSHIBA) |
05K8979 |
|
|
DUMMY CDROM |
05K5979 |
|
29 |
COMBO BAY BRACKET ASM |
05K5919 |
|
30 |
COMBO BAY FPC KIT |
05K2819 |
|
|
|
|
|
|
AC ADAPTER |
|
|
|
AC ADAPTER 3P 56W (SANKEN) |
02K7007 |
|
|
AC ADAPTER 2P 56W (SANKEN) |
11J8974 |
|
|
AC ADAPTER 2P 56W (ASTEC) |
02K6497 |
|
|
AC ADAPTER 3P 56W (ASTEC) |
02K7011 |
|
|
|
|
|
|
KEYBOARD |
|
|
|
KBD ASM US English |
02K4705 |
|
|
KBD ASM Canadian French |
02K4706 |
|
|
KBD ASM German |
02K4707 |
|
|
KBD ASM UK English |
02K4708 |
|
|
KBD ASM French |
02K4709 |
|
|
KBD ASM Dutch |
02K4710 |
|
|
KBD ASM Swedish/Finnish |
02K4711 |
|
|
KBD ASM Norwegian |
02K4712 |
|
|
KBD ASM Danish |
02K4713 |
|
|
KBD ASM Italian |
02K4714 |
|
|
KBD ASM European Spanish |
02K4715 |
|
|
KBD ASM Belgian |
02K4716 |
|
|
KBD ASM Swiss |
02K4717 |
|
|
KBD ASM Portuguese |
02K4718 |
|
|
KBD ASM Greek |
02K4719 |
|
|
KBD ASM Hebrew |
02K4720 |
|
|
KBD ASM Turkish |
02K4721 |
|
|
KBD ASM Arabic |
02K4722 |
|
|
KBD ASM Russian |
02K4723 |
|
|
KBD ASM Slovakian |
02K4724 |
|
|
KBD ASM Slovenian |
02K4725 |
|
|
KBD ASM Hungarian |
02K4726 |
|
|
KBD ASM Czech |
02K4727 |
|
|
KBD ASM Japanese |
02K4728 |
|
|
KBD ASM Traditional Chinese |
02K4729 |
|
|
KBD ASM Korean |
02K4730 |
|
|
KBD ASM LA Spanish |
02K4731 |
|
|
|
|
|
|
Miscellaneous |
|
|
|
MISC NAME PLATE LABEL PACK |
05K5921 |
|
|
RUBBER KIT |
05K5920 |
|
|
FPC STOPPER TAPE |
05K5914 |
|
|
MYLAR PACK |
05K5982 |
|
|
SCREW PACK |
05K5489 |
|
|
FOOT L&R |
05K5504 |
|
|
|
|
|
|
Others |
|
|
|
AC Adapter 45W (2 PIN) (with information label) |
12J0536 |
|
|
AC Adapter 45W (3 PIN) (with infor-mation label) |
12J0537 |
|
|
Power cord (Japan 2 PIN) |
13H5273 |
|
|
Power cord (Argentina, Australia, Papua New Guinea, New Zealand, Paraguay, Uruguay) |
76H3514 |
|
|
Power cord (Bahamas, Barbados, Bermuda, Bolivia, Canada, Cayman Islands, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Guyana, Haiti, Honduras, Jamaica, Korea (South), Mexico, Netherlands, Antilles, Nicaragua, Panama, Peru, Philippines, Saudi Arabia, Suriname, Taiwan, Trinidad (West Indies), U.S.A., Venezuela) |
76H3516 |
|
|
Power cord (Austria, Belgium, Bulgaria, Czech Republic, Egypt, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Spain, Sweden, Turkey, former Yugoslavia) |
76H3518 |
|
|
Power cord (Denmark) |
76H3520 |
|
|
Power cord (Bangladesh, Pakistan, South Africa, Sri Lanka) |
76H3522 |
|
|
Power cord (Thailand) |
76H4866 |
|
|
Power cord (Abu Dhabi, Albania, Antigua, Bahrain, Brunei, Dubai, Fiji, Hong Kong, India, Ireland, Kenya, Kuwait, Macao, Malaysia, Nigeria, Oman, People's Republic of China, Qatar, Singapore, United Kingdom) |
76H3524 |
|
|
Power cord (Switzerland) |
76H3528 |
|
|
Power cord (Israel) |
76H3532 |
|
|
Power cord (Chile, Italy) |
76H3530 |
|
|
Power cord (Japan) |
13H5273 |
|
