Netfinity 5000 - Controls

Applicable to: World-Wide

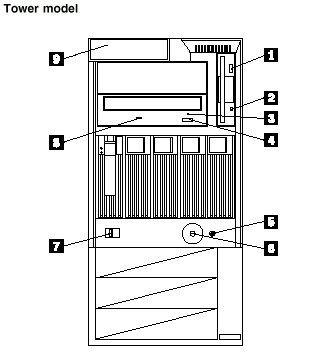

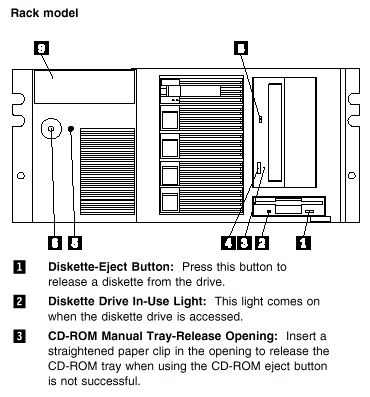

Controls

Caution The Power-On button on the front of the server does not turn off the electrical current supplied to the server. The server also might have more than one power cord. To remove all electrical current from the server, ensure that all power cords are disconnected from the power source.

The automatic restart feature, which enables the server to restart following a momentary power loss, means that the server is never completely turned off. Do not set the server to the Standby mode if any drive in-use light is on. This might damage the information stored on a hard disk drive or on a diskette. A Power-On Switch protector, which prevents the Power-On Switch from being pushed accidentally, is shipped with the server.

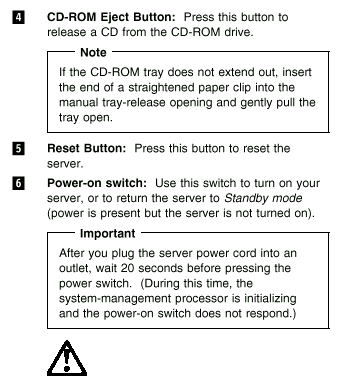

To toggle the server between Standby mode and actively running, press and release the Power-On Switch.

This panel contains LEDs that light to indicate conditions on the server, such as power on or a system error (see Front Panel Indicators).
