Service Hints & Tips

Document ID: DETR-42RNQQ

Aptiva - 2158/2163 Removals and replacements - Adapter cards

Applicable to: World-Wide

Adapter Cards

NOTE: Before removing an adapter card, note the location of the adapter card and any cables. When removing an adapter card, install the replacement card in the same slot as the one you removed. If necessary, remove cards from the adjacent slots of the failed card.

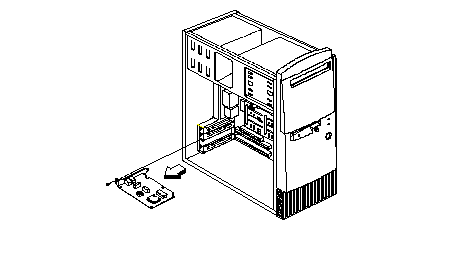

1. Position the system unit such that the card is accessible to you.

2. If the adapter card has cables, disconnect them. Be sure to take note where those cables are connected and how they are oriented. You will need to reconnect those cables when you reinstall the card.

3. Remove the adapter card screw.

4. Carefully pull the adapter card straight out of the slot so that the card does not bend.

	Search Keywords
	Hint Category	Adapter Cards, Hardware Installation/Configuration
	Date Created	01-12-98
	Last Updated	10-02-99
	Revision Date	10-02-2000
	Brand	IBM Aptiva
	Product Family	Aptiva
	Machine Type	2158, 2163
	Model	all
