Service Hints & Tips |
Document ID: MNOK-42RKAQ |
Aptiva - 2168 (Service Level H/I) Indicator and LED cable
Applicable to: World-Wide
2085 - Indicator LED and Cable

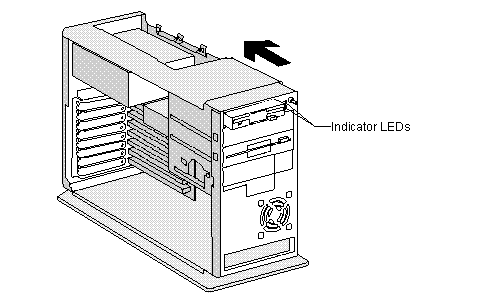

- Push in on the indicator LED and remove from the rear.
- Disconnect the LED and cable from the system board.
See "Parts/Test Point Locations" for LED and cable locations.
|
Search Keywords |
| |
|
Hint Category |
Hardware Installation/Configuration, Hard Drives, Power | |
|
Date Created |
01-12-98 | |
|
Last Updated |
14-12-98 | |
|
Revision Date |
14-12-99 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2168 | |
|
Model |
M40; M41; M53; M54; M55; M56; M57; M58; M60; M61; M62; M70; M71; M72; M91; 931; 93W; 932; 9W2; 934; 935; 951; 95W; 964; 96W; Y40; Z40; X40; N50; N51; N60; N61; N71; LL5; LL6; L50; L60; K50; K60; A15; A40; A44; A45; A50; A51; A52; A90; A92; A94; 5R2; 5R3; 6R4; 5R4; 6R0; 5R6; 5R8; 5R9; 6R5; C45; 132; 142; 152; 154; 161; 162; 163; 171; 172; 182; L55; K55; L65; K65; L66; K66; U55; U65; U66; X37; X47; Y37; Y47; Z37; Z47; S50; S55; S65; S64; S74; S75; W37; W47 | |
|
