Service Hints & Tips

Document ID: BMOE-42ELXK

TP 390,390E,1720 - LCD Inverter ASM 12.1" Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery ASM
• Hard Disk Drive
• Combo Bay
• Keyboard
• LCD Bezel ASM 12.1"
• Speaker ASM 12.1"
• VR Board ASM 12.1"

Note: See "Setting the LCD Panel ID"

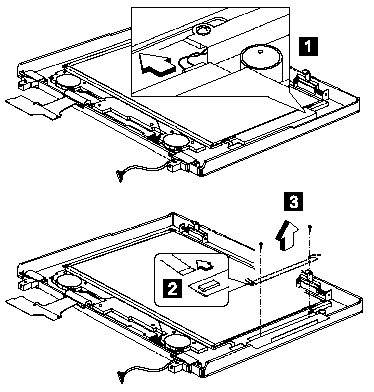

To remove the LCD inverter ASM:

1. Disconnect the cable from the inverter board.

2. Lift the inverter board away from the display panel.

	Search Keywords
	Hint Category	Hardware Installation/Configuration
	Date Created	20-11-98
	Last Updated	23-03-99
	Revision Date	23-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 390, ThinkPad i Series 172x
	Machine Type	2626, 2627
	Model	Various
