Service Hints & Tips |
Document ID: GKEY-3JYHZX |
TP 560/E - Diagnostic Error Codes
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Diagnostic Error Codes

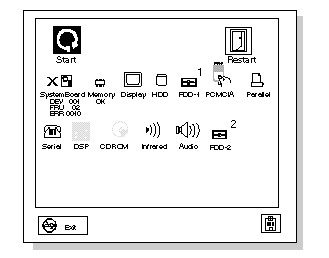

If an error is detected, the following appears:
Large X on the left side of the device icon.
Device ID (three digit)
Error code (two digit)
FRU code (four digit)
The device ID and error code are used to indicate the detail portion of the FRU which caused the error. If replacing a FRU does not correct the problem, see the device ID or error code from the previous failure. If they have changed, the cause might be because the new FRU is detective or that the FRU was incorrectly installed.

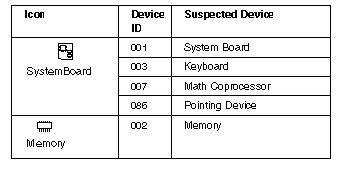

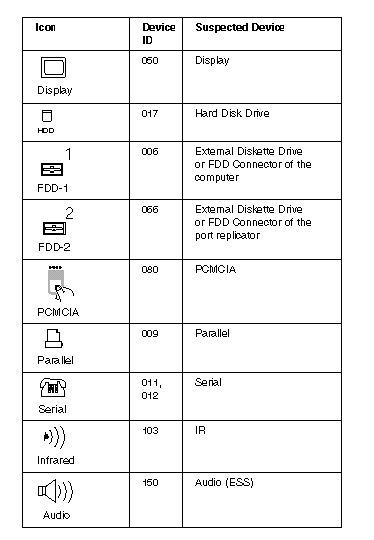

Device ID:
If an error is detected by the diagnostic tests, a three digits device ID is displayed. The device ID indicates suspected device. Note: Only authorized servicers may replace parts.
|
