Parts Information |
Document ID: DDSE-469MBZ |
PC Server 320 - System Parts Listing
Applicable to: World-Wide
System
The model(s) listed for the following FRUs indicates FRUs that the models may contain at the time of shipping. However, other FRUs are supported in each model as options.

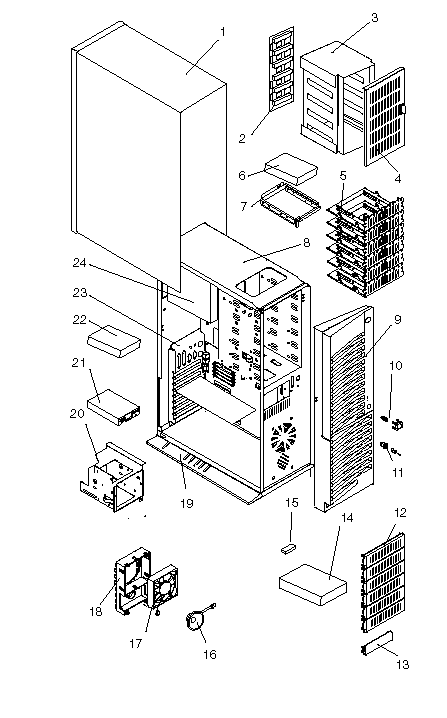

Index System Unit (PC Server 320 - Type 8640)
.
<PRE>
Index FRU P/N
1 Access Cover 06H8930
2 Hot Swap Backplane (ARRAY Models)
(1Y0, 1YT, MZ1, MY0, MYT, MYR, MD0, MDV
MDS, MZ0, MZV, 1D0, 1DS) 06H7669
3 Hot Swap Shell (ARRAY Models)
(1D0, 1DS, 1Y0, 1YT, MYT, MYR, MD0, MDV
MDS, MZ0, MZV) 06H5068
4 Hot Swap Door (ARRAY Models)
(1Y0, 1YT, MY0, MYT, MYR, MD0, MDV,
MDS, MZ1, MZ0, MZV, 1D0, 1DS) 06H5070
5 1/2-Inch HD Drive Adapter Tray
(0D0, 0DV, 0T0, 0XT, 0Y0, 0YT)
(MD0, MDS, MDV, MX0, MXT, MY0,
MYR, MYT, MZ0, MZ1, MZV) 06H2652
6 DASD
1GB Fast Hard Disk
(Models 0X0, 0XT, MX0, MXT) 06H6416
1GB Fast/Wide Hard Disk
(Models 0YT, MY0, MYT) 06H3371
2GB Fast/Wide Hard Disk
(Models MDV,MDS,MZV,0DV,0ZV,1DS,EEV) 06H8561
SCSI (Addr.-bit 8) Pin-Converter (6x)
(for RAID HDD 06H8560, 06H8561,
06H8562,76H0959) 75H8103
7 Hot Swap Tray (Wide) w/o cables
(Models 1D0, 1DS, 1Y0, 1YT, MD0, MDS, M
MY0, MYT, MZ0, MZ1, MZV 06H3956
Hot Swap Tray Option w/o cables (Narrow
(Models 1D0, 1DS, 1Y0, 1YT, 1Z0) 71G6292
8 Base Frame Assembly
(EISA Models) 06H8933
Base Frame Assembly
(Micro Channel Models) 06H8934
9 Front Bezel/Door w/ Keylock 06H8935
10 Keylock Asm. (with Keys) 33F8433
12 5.25-Inch Blank Bezel 71G0771
13 3.5-Inch Blank Bezel 71G0770
14 2x SCSI CD-ROM
(Models 0Y0, 0YT, MX0, MXT, MY0, MYT, M06H3847
4x SCSI CD-ROM
(Models 0D0, 0DV, 0T0, 0XT, 1D0, 1DS, M
MDV, MDS 88G4921
15 16/8 Bit SCSI Converter
(68-pin to 50-pin) 92F0324
16 Speaker 06H2649
17 92mm Fan Asm. (with Connector)
(for EISA Models) 06H2647
120mm Fan Asm. (with Connector)
(for Micro Channel Models) 96G2112
18 Card Guide (EISA Models) 71G0757
Card Guide (Micro Channel Models) 91G2111
19 Pedestal
(Models 0X0, 0XT, 0Y0, 0YT, 1Y0
1YT, MX0, MXT, MY0, MYT) 96G2412
Pedestal
(Models 0D0, 0DV, 0Z0, 0ZV, 1D0
1DS, 1Z0, 2D0, 2Z0, 3D0, 3Z0, EE0
EE1, EES, EEV, MD0, MD2, MDS
MDV, MZ0, MZ1, MZ2, MZV) 96G2412
20 2 Bay Drive Cage
(Micro Channel Models) 06H8937
3 Bay Drive Cage
(EISA Models) 06H8938
21 1.44MB Diskette Drive 93F2361
1.2MB 5.25-Inch Diskette Drive Asm. 64F4102
Enhanced Internal CD-ROM II Drive 92F0084
22 Hard Disk Drive
270 MB (IDE) 82G5926
364 MB (IDE) 82G5927
527 MB (IDE) 92F0405
728 MB (IDE) 82G5929
540 MB (SCSI) 92F0406
1 GB (SCSI) 92F0428
2 GB (SCSI) 92F0440
23 I/O Die Cast Assembly
Early-Models only
(Models MX0, MXT, MY0, MYT, MYR) 96G2411
I/O Die Cast Assembly
(Micro Channel Models) 96G2107
24 300W Power Supply Asm.
(with Switch) 71G0044
Memory High Rise Card
(Models MD0,MD2,MDS,MDV,MZ0,MZ1,MZ2) 96G3692
Memory High Rise Card
(Models MX0,MXT,MY0,MYT) 96G1339
Misc. Parts Kit 06H8940
EMC Gasket Keyboard Mouse (1x)
EMC Ground Contacts (4x)
I/O Panel (1x)
Nut Screws 4-40 (2x)
Power Switch Bracket (1x)
Screws 6x32x5 16 Inch (6x)
Screws 3x8 mm Plastite (3x)
Screws 3 mm Diskette Drive (3x)
Screws 6-32 Hard Disk Drive (2x)
System Board Edge Support (1x)
SCSI-2 Fast/Wide PCI Adapter
(Models 0T0, 0XT, 0Y0, 0YT, 0D0, 0DV,
MDS, MZ1) 06H8574
SCSI-2 Fast/Wide PCI-Bus RAID Adapter
(Models MDS, MZ1, 1D0, 1DS) 06H5078
4 MB Memory SIMM for PCI RAID Adapter 60G2175
PC ServeRAID Adapter
(06H9334) 76H6875
SVGA Card
(Models 0T0, 0XT, 0Y0, 0YT, 1Y0, 1YT) 71G0031
SVGA Card (FRU P/N 71G0031)
(Models 0D0, 0DV, 0Z0, 0ZV, 1D0, 1DS, 106H9114
Battery (Microchannel Models) 33F8354
Real Time Clock with Battery
(EISA Models) 06H3398
Power Button (with Spring) 06H2191
Mouse 06H4595
Memory
4MB Memory SIMM (Parity)
(Models MX0, MXT) 73G3233
8MB Memory SIMM (Parity)
(Models 0D0, 0DV, 0T0, 0XT, 0Y0, 0YT, 1
1DS, 1Y0, 1YT, MY0, MYT, MYR, MD0, MDV, MDS
MZ0, MZ1, MZV) 73G3234
16MB EOS Memory
(Models 2D0,2Z0,3D0,3Z0,EE0,EE1,EES,EEV11H0634
16MB EOS Memory
(Models MZ2, MD2) 11H0646
256K Cache Module (1 each) MC-Models 96G2121
512K Cache Module (1 each) MC-Models 96G2413
256K DIL Cache Module (1 x) xYx-Model 06H8510
Processor Chips
P54C 50/75MHz Processor Chip
(with Heat Sink)
(Models 0T0, 0XT, MX0, MXT) 95G9613
P54C 60/90MHz Processor Chip
(with Heat Sink)
(Models 0Y0, 0YT, 1Y0, 1YT) 06H6142
P54C 60/90MHz Processor Chip
(with Heat Sink)
(Models MY0, MYT, MYR) 95G9614
P54C 100/66MHz Processor Chip
(Models 0Z0, 0ZV, 1Z0) 75H8846
P54C 100/66MHz Processor Chip
(Models MZ0, MZ1, MZV) 96G2415
P54C 133/66MHz Processor Chip
(Models 0D0,0Dv,1D0,1DS, 2D0,3D0) 07H0570
P54C 133/66MHz Processor Chip
(Models MD0, MDV, MDS) 96G2423
P54C 166/66MHz Processor Chip
(Models EE0, EE1, EES, EEV) 07H0971
Heat Sink with Clip
(Models 0T0, 0XT, 0Y0, 0YT, 1Y0, 1YT) 06H6137
Heat Sink with Clip
(Models MX0, MXT, MY0, MYT, MYR) 95G9612
System Board w/o Memory & Processor
(Models 0T0, 0XT, 0Y0, 0YT, 1Y0, 1YT
0D0, 0DV, 1D0, 1DS) (FRU 06H2173) 12J4534
System Board w/o Memory & Processor
(Models EE0, EE1, EES, EEV (76H0469)) 12J4534
System Board /w SVGA and SCSI F/W
supports 75, 90, 100 and 133 MHz
(Models MD0, MD2, MDS, MDV, MZ0, MZ1
MZ2, MZV) 96G3694
System Board /w SVGA and SCSI F/W
supports 75 and 90 MHz
(Models MX0, MXT, MY0, MYT) 96G1340
Cables
1 Security Cable Cover with Lock 06H5072
2 SCSI Fast 4-Drop Cable
(Models 0T0, 0XT, 0Y0, MX0, MXT) 82G3626
SCSI Fast/Wide Cable
(Models 0T0, 0XT, 0YT, MX0, MXT, 0D0)
0D0, 1D0, 1DS, 1Z0) (AHA-2940-F/W to Ta06H6440
3 SCSI 2-Drop Cable
(Models 1D0, 1DS, 1Y0, 1YT, 1Z0, MY0)
MYT, MYR, MD0, MDV, MDS, MZ0) 06H5065
4 Diskette Drive Cable with Power 92F0423
5 Parallel Data Cable 06H2166
6 Serial Data Cable 06H2165
7 SCSI F/W Int./Ext. Port Cable
(Models 1D0, 1DS, 1Y0, 1YT, 1Z0) 06H6864
8 LED Cable Assembly 06H8936
C2 Cable Assembly 06H8767
DASD Status Cable
(Models 1Y0, 1YT, MDS, MZ1, 1D0, 1DS) 06H7766
Keylock Cable 06H8766
SCSI Short Cable to I/O Casting
(for Micro Channel Models) 96G2102
.
</PRE>
|
