Service Hints & Tips |
Document ID: GKEY-3KEBV2 |

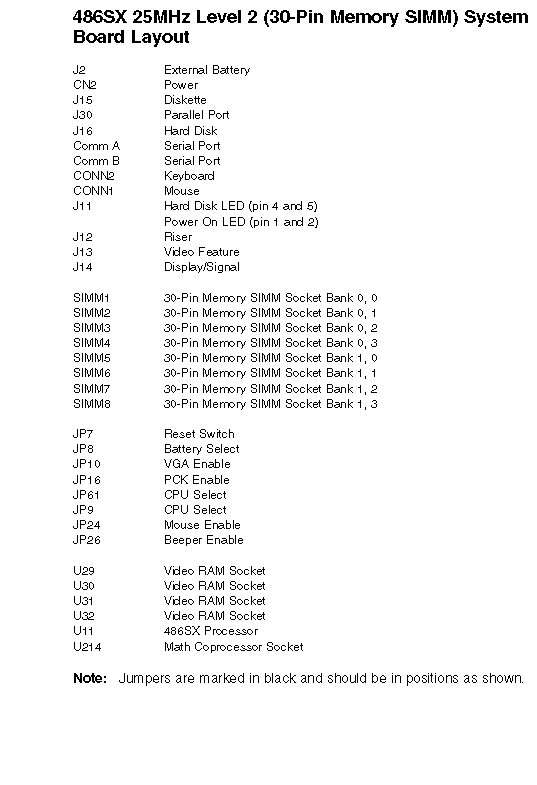

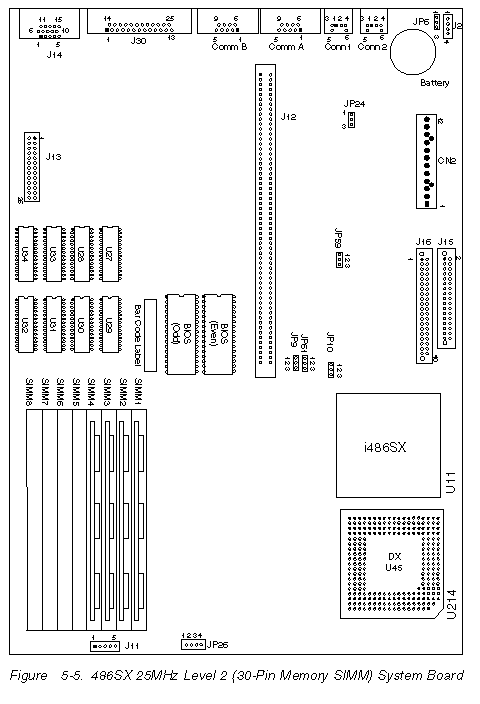

PS/1 - System Board Layout 486SX 25MHz Level 2
Applicable to: World-Wide
|
Search Keywords |
| |
|
Hint Category |
Hardware Installation/Configuration, System Boards | |
|
Date Created |
29-11-95 | |
|
Last Updated |
17-12-98 | |
|
Revision Date |
17-12-99 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
PS/1 | |
|
Machine Type |
2133 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
Reverse Doclinks |
