Parts Information |
Document ID: RMIE-3BBH3W |
TP 760C/CD/L/LD/E/ED/EL/ELD - Common FRU parts
Applicable to: World-Wide
|
Miscellaneous Parts | |
|
Security Parts Kit |
29H9294 |
|
(Includes the following:) | |
|
Keyboard Security Plate (760C) | |
|
Keyboard Security Plate (760CD) | |
|
PC Card Security Plate (760C) | |
|
PC Card Security Plate (760CD) | |
|
PC Card Security Stopper | |
|
Keyboard Security Plate for Dock (760C) | |
|
Keyboard Security Plate for Dock (760CD) | |
|
Screw Kit |
39H7003 |
|
(Includes the following:) | |
|
M2.5 x 6 Screw (5) | |
|
M2.5 x 4 Screw (10) | |
|
M2.5 x 8 Screw (5) | |
|
M2.5 Nut (10) | |
|
Hex Stud D-Sub (5) | |
|
Hex Stud Bus (5) | |
|
M2.5 x 8 Flathead (5) | |
|
M2 x 4 (5) | |
|
Screw Cover for Top cover (5) | |
|
M2.5 x 4 Flathead (5) | |
|
M2.5 x 5 Flathead (5) | |
|
Nut M2.5 (5) | |
|
M2.6 x 5 Deform (5) | |
|
M2.5 x 14 (5) | |
|
M2.5 x 4 Thin Head (5) | |
|
M1.4 x 1.8 Thin Head (5) | |
|
M2 x 4.3 Thin Head (5) | |
|
Nylon Screw Kit |
97H3449 |
|
(Includes the following:) | |
|
M2.5 x 4 (20) | |
|
M2.5 x 6 (15) | |
|
M2.5 x 8 (10) | |
|
M2.5 x 14 (5) | |
|
M2 x 14 (5) | |
|
DAA Assembly | |
|
Connector for EMEA |
12J1572 |
|
Austria |
59G1041 |
|
Australia |
59G1040 |
|
Belgium |
43G3414 |
|
Denmark |
59G1042 |
|
Finland |
54G0715 |
|
France |
4525652 |
|
Germany |
77H9765 |
|
Malaysia |
59G1066 |
|
Netherlands |
80H3480 |
|
Norway |
59G1044 |
|
New Zealand |
80G4584 |
|
PRC and Hong Kong |
54F0693 |
|
Sweden |
54F0717 |
|
Switzerland |
59G1057 |
|
Taiwan |
59G1067 |
|
Thailand |
59G1064 |
|
U.K. |
59G1045 |
|
PSTN Cable | |
|
Austria |
58G4386 |
|
Australia |
58G4343 |
|
Belgium |
58G4346 |
|
Denmark |
58G4333 |
|
Finland |
58G4334 |
|
France |
58G4335 |
|
Germany |
58G4347 |
|
U.S., Thailand, Malaysia, Singapore and Hong Kong |
43G3398 |
|
Netherlands |
58G4340 |
|
New Zealand and PRC |
58G4332 |
|
Norway |
58G4334 |
|
Sweden |
58G4336 |
|
Switzerland |
58G4348 |
|
U.K. |
58G4345 |
|
Options | |
|
1. When you replace the AC Adapter or the Quick Charger, use the one for the country you are in, even if the computer is from a different country. | |
|
2. The warranty for the system unit does not apply to all options |
ll options. |
|
810MB Hard Disk Drive Assembly |
29H9366 |
|
1.08GB Hard Disk Drive Assembly |
29H9367 |
|
5.1GB Hard Disk Drive Assembly |
00K7904 |
|
Audio Cable |
66G5180 |
|
Battery Pack (NiMH) |
29H9233 |
|
Battery under Spacer |
29H9369 |
|
Cable Travel Charger Assembly |
85G1531 |
|
Car-Battery Adapter |
49G1148 |
|
Conversion Cable (Game Port) |
29G9269 |
|
Conversion Cable (Video) |
85G1897 |
|
DIMM 8MB (760Cx/760Lx) |
29H9287 |
|
DIMM 16MB |
29H9288 |
|
External Battery Under Spacer |
29H9369 |
|
External Diskette Drive Box Kit |
66G5069 |
|
FDD (4-mode 2.88MB) |
29H9372 |
|
FDD External Box Kit |
66G5069 |
|
Hard Disk Drive over Pack |
39H7040 |
|
Headset |
85G1529 |
|
Interface Cable to System for Keyboard |
84G2531 |
|
Interface Cable to Keyboard for Keypad |
84G2532 |
|
Mini-DIN to Mini-DIN Cable (Modem to DAA Cable) |
84G6474 |
|
Microphone |
66G7871 |
|
Model Label |
46H6034 |
|
Name Label |
66G9228 |
|
PCMCIA Cartridge |
84G1303 |
|
PCMCIA RF Cartridge |
84G1304 |
|
Port Replicator |
66G3575 |
|
Port Replicator with PCMCIA |
66G3574 |
|
PS/2 Miniature Mouse |
95F5723 |
|
Quick Charger |
85G1530 |
|
Quick Charger Cable |
85G1531 |
|
Second HDD Tray |
29H9295 |
|
Small Car-Battery Adapter |
84G4359 |
|
Travel Charger Assembly |
85G1530 |
|
Wall Plug |
85G2367 |
|
SO-DIMM 8 MB (760Ex) |
42H2767 |
|
SO-DIMM 16 MB (760Ex) |
42H2768 |
|
SO-DIMM 32 MB (760Ex) |
42H2769 |
|
Numeric Keypad | |
|
Belgian |
95F5741 |
|
Canadian French |
95F5466 |
|
Danish |
95F5467 |
|
Dutch |
95F5467 |
|
French |
95F6313 |
|
German |
95F6314 |
|
Greek |
95F5467 |
|
Hebrew |
95F5741 |
|
Icelandic |
95F5467 |
|
Italian |
95F6316 |
|
Japanese |
79F6401 |
|
Norwegian |
95F5467 |
|
Spanish |
95F6315 |
|
Swedish or Finnish |
95F5468 |
|
Swiss (French) |
95F5711 |
|
Swiss (German) |
95F5715 |
|
Turkish |
95F5467 |
|
U.K. English |
95F5741 |
|
U.S. English |
95F5741 |
|
Black Keypad | |
|
French |
84G6286 |
|
German |
84G6280 |
|
Italian |
84G6292 |
|
Norwegian |
84G6310 |
|
Swedish |
84G6304 |
|
U.K. English |
84G6298 |
|
U.S. English |
84G2530 |
|
Black Keyboard | |
|
French |
84G6285 |
|
German |
84G6279 |
|
Italian |
84G6291 |
|
Norwegian |
84G6309 |
|
Swedish |
84G6303 |
|
U.K. English |
84G6297 |
|
U.S. English |
84G2529 |
|
Accessories | |
|
Keyboard/Mouse Cable |
54G0444 |
|
Tools | |
|
Tri-Connector Wrap Plug |
72X8546 |
|
PC Test Card |
35G4703 |
|
Audio Wrap Cable |
66G5180 |
|
Screwdriver Kit |
95F3598 |
|
ThinkPad Hardware Maintenance Diskette Version 1.30 |
82G3891 |
|

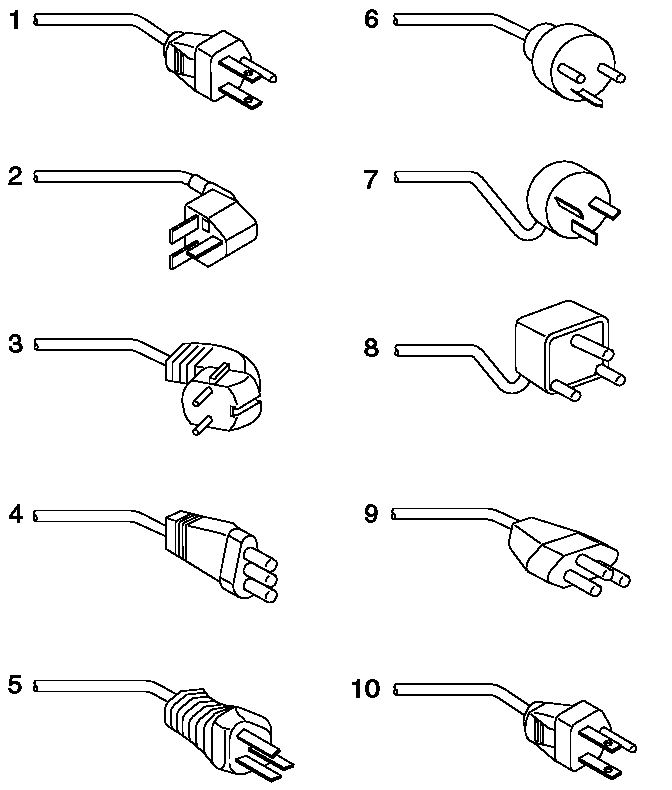

Power Cords | ||
|
Warning: Use the power cord certified for your country | ||
|
3-Prong | ||
|
1 |
Colombia, U.S., Venezuela |
25H2207 |
|
Korea |
25H2207 | |
|
Japan, 2-prong |
85G6665 | |
|
2 |
Hong Kong, Singapore, U.K. |
25H2215 |
|
3 |
France, Germany, Spain |
25H2209 |
|
4 |
Italy |
25H2223 |
|
5 |
Australia, New Zealand |
25H2205 |
|
6 |
Denmark |
25H2211 |
|
7 |
Israel |
25H2225 |
|
8 |
Bangladesh, Pakistan, Sri Lanka,South Africa |
25H2213 |
|
9 |
Switzerland |
25H2221 |
|
10 |
Thailand |
25H2219 |
|
2-Prong Slim | ||
|
1 |
Colombia, U.S., Venezuela |
13H5264 |
|
Korea |
13H5264 | |
|
Japan |
13H5273 | |
|
2 |
Hong Kong, Singapore, U.K. |
14F0033 |
|
3 |
France, Germany, Spain |
13H5270 |
|
4 |
Italy |
13H5270 |
|
5 |
Australia, New Zealand |
13H5276 |
|
6 |
Denmark |
13H5270 |
|
7 |
Israel |
13H5270 |
|
8 |
Bangladesh, Pakistan, Sri Lanka, South Africa |
13H5279 |
|
9 |
Switzerland |
13H5270 |
|
10 |
Thailand |
13H5264 |
|
3-Prong Slim | ||
|
1 |
Colombia, U.S., Venezuela |
76H3516 |
|
Korea |
76H3535 | |
|
Japan |
76H3526 | |
|
2 |
Hong Kong, Singapore, U.K. |
76H3524 |
|
3 |
France, Germany, Spain |
76H3518 |
|
4 |
Italy |
76H3530 |
|
5 |
Australia, New Zealand |
76H3514 |
|
6 |
Denmark |
76H3520 |
|
7 |
Israel |
76H3532 |
|
8 |
Bangladesh, Pakistan, Sri Lanka, South Africa |
76H3522 |
|
9 |
Switzerland |
76H3528 |
|
10 |
Thailand |
76H3516 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
01-08-96 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 760C, ThinkPad 760E, ThinkPad 760CD, ThinkPad 760L/LD, ThinkPad 760ED, ThinkPad 760EL/ELD | |
|
Machine Type |
9546, 9547 | |
|
Model |
Various | |
|
