PCServer704 - Diagrams (SCSI Drive)
Applicable to: World-Wide
Drive (SCSI-2)

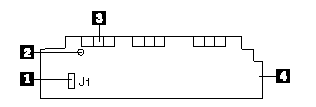

SCSI Drive Status LED Board
|
1. |
J1, cable to SCSI backplane |
|
2. |
Hole for standoff |
|
3. |
Status LEDs (three sets of three); insert board so these appear in slots in front EMI panel |
|
4. |
End facing slot in center divider |
|

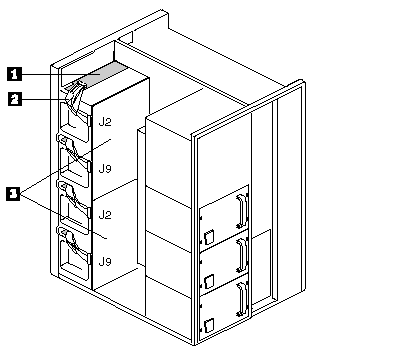

1. |
Status LED board (one board over each row of SCSI drives) |
|
2. |
Cable form J1 on status LED board to J2 or J9 on SCSI backplane (one for each board) |
|
3. |
SCSI backplanes, upper and lower |
|
