PCServer330 - Microprocessor Board, Pentium Pro

Applicable to: World-Wide

Microprocessor Board - Pentium Pro

Jumper Settings - Pentium Pro

Note Refer to Bus/CPU Speed MHz Settings - Pentium Pro for the correct clock speed and frequency selection jumper settings for the microprocessor.

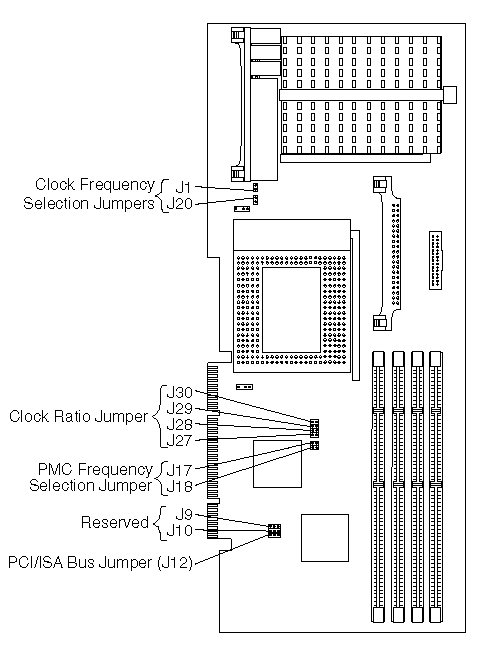

Jumper	Description
J1/J20	Clock speed jumper block.
J30/J29 J28/J27	Frequency selection jumper block. The default Core/Bus fraction is 3.
J17/J18	Microprocessor memory controller (PMC) frequency selection jumper block. The default setting is 66.66 MHz.
J9, J10	Reserved.
J12	PCI/ISA bus jumper. To ensure proper operation of the PC Server 330, do not move the jumper from its default position.

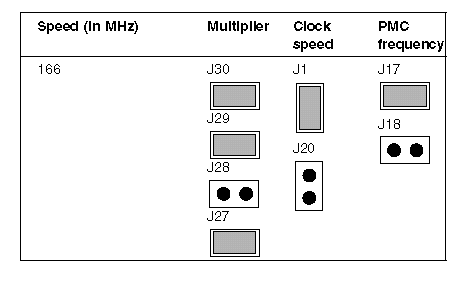

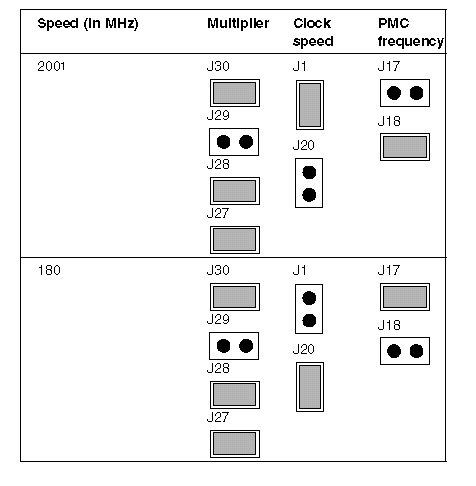

Bus/CPU Speed MHz Settings - Pentium Pro
