TP 760EL/ELD - FRU parts listing

99.596 bytes

Parts Information

Document ID: RMIE-3AKELT

TP 760EL/ELD - FRU parts listing

Applicable to: World-Wide

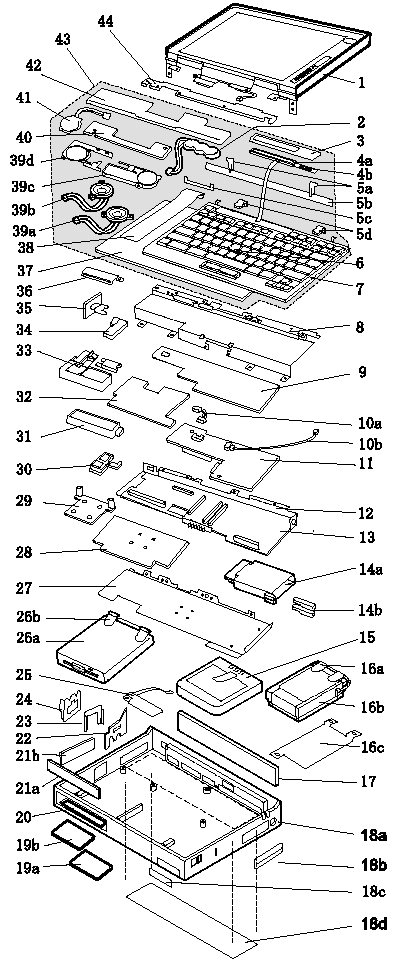

Parts Listing :

Model 760EL/ELD

Index

Part (760EL/760ELD)

FRU

1

LCD Assembly
(760EL/760ELD, 12.1 TFT thick type)
(U.S.-9547, model U3F, U48, U4F, 4H,U4R, U4S)

29H9226

LCD Assembly
(760EL, 11.3, DSTN)
(U.S.-9547, model U6F, U6G, U6R)

39H6232

LCD Assembly
(760EL, 12.1 TFT slim type)
(U.S.-9547, model U4G, U4K, U4T)

82H8496

2

Standby Battery

29H9497

3

LCD Indicator Assembly Cover

69H8303

4a

LCD Indicator Assembly

29H9220

4b

Volume Knob

69H8304

5a

See Keyboard Misc. parts

5b

Keyboard Foot

39H7038

5c

Keyboard FPC Bracket

39H7035

5d

See Keyboard Misc. parts

6

TrackPoint III Cap

84G6536

7

Keyboard (See Keyboard Section)

8

Upper Shield Case

29H9213

9

Video Card (U.S.-9547, model U3F, U48, U4F, U4H, U4R, U4S, U6F, U6G, U6H, U6R)

39H6228

Video Card (U.S.-9547, model U4G, U4K, U4T)

97H5502

10a

Volume Connection Cable

29H9211

10b

Mic Connection Cable

29H9210

11

ESS Card

46H5353

12a

Rear Shield Case

29H9201

12b

FDD Connector Cable

29H9203

13

System Board Note:
In U.S., this FRU is for 9547-U66, 9547-U67,
9547-U6F, 9547-U6G, 9547-U48, 9547-U46, 9547-U4H, 9547-U4F, 9547-U4R, 9547-U4S, 9547-U36, 9547-U3F, and 9547-U6R.

11J8234

System Board- SVGA Note:
In U.S., this FRU is for 9547-U4G and 9547-U4T.

11J7660

System Board- DSTN Note:
In U.S., this FRU is for 9547-U6H.

11J8234

14a

PC Card Slot

46H6031

14b

Eject Button

46H6028

15

Battery Pack (Li-ion)

29H9232

16a

HDD Removable Strap

29H9236

16b

Hard Disk Drive (810 MB) (U.S.-9547, model U3F, U6F, U6G, U6R)

29H9366

Hard Disk Drive (1.08 GB) (U.S.-9547, model U48, U4F, U4H, U4R, U4S)

29H9367

Hard Disk Drive (1.2 GB)

29H9228

Hard Disk Drive (1.4 GB) (U.S.-9547, model U6H)

82H8884

Hard Disk Drive (2.1 GB) (U.S.-9547, model U4G, U4K, U4T)

82H8489

16c

EMI Sheet

39H7031

17

Rear Connector Door

29H9186

18a

Base Cover For Japan

46H5599 46H5600

18b

PC Card Door

29H9238

18c

Name Label

46H6034

18d

Game Port Bracket (U.S.-9547, model U4G, U4K, U4T)

82H8895

18e

Thermal Rubber Sheet

82H8966

19a

DIMM Cover

69H8422

19b

DIMM Adapter Card (8 MB) (U.S.-9547, model U48, U4G, U4H, U4K, U4R, U4T)

83H7126

19b

DIMM Adapter Card (Blank) (U.S.-9547, model U3F, U4F, U4S, U6F,

U6G, U6H, U6R)

83H7124

20

Lower Spacer

29H9194

21a

FDD Blank Bezel

29H9289

FDD Bezel

83H5431

21b

Option Cover

29H9193

22

AV Cover

29H9190

23

Modem Cover Lock

39H7027

24

Modem Cover

29H9188

25

Front IR Assembly

29H9215

26a

Diskette Drive (3-mode)
(U.S.-9547, model U3F, U48, U4F,U4G, U4K, U4S, U4T, U6F, U6G, U6H, U6R)

29H9230

Diskette Drive (4-mode)
Note: In the U.S., either of the CD-ROM 4X drives below may be used for 9547, model U3F. Order the FRU number of the drive being replaced.

29H9372

CD-ROM Drive, 4X

29H9231

CD-ROM Drive, 4X

02K0490

26b

Diskette Drive Removable Strap

29H9237

27

Lower Shield

29H9202

28

CPU Card
(760EL/760ELD, 100 MHz, Pentium)
(U.S.-9547, model U3F, U6G)

11J9673

CPU Card
(760EL/760ELD, 120 MHz, Pentium)
(U.S.-9547, model U4F, U4S, U6F, U6R)

12J1574

CPU Card
(760EL, 133 MHz, Pentium)
(U.S.-9547, model U48, U4H, U4R)

11J9674

CPU Card
(760EL, 133 MHz, Pentium)
(U.S.-9547, model U4G, U4K, U4T)

82H8897

CPU Card
(760EL, 120 MHz, Pentium)
(U.S.-9547, model U6H)

12J1574

29

Heat Sink

39H7006

30

See Misc. Parts

31

Modem Bracket Assembly

46H5360

32

DC/DC Card

29H9204

33

See Misc. Parts

34

Power Switch Actuator

29H9209

35

Power Switch Button

29H9192

36

Rear IR Assembly

29H9214

37

Keyboard Base

29H9218

38

Keyboard Cable

29H9222

39a

Speaker (right)

29H9225

39b

Speaker (left)

39H6983

39c

Speaker Holder (right)

39H7033

39d

Speaker Holder (left)

39H7034

40

Keyboard Card

29H9221

41

Backup Battery

29H9506

42

Palm Rest
For Japan

29H9219 39H7032

43

Keyboard Unit (See Keyboard Unit Section)

44

Top Cover

29H9184

AC Adapter (35W, Slim U.S., Japan)
For EMEA/AP
For EMEA/AP Slim 3-Prong

85G6705
85G6701
85G6735

Keyboard Misc. Parts

39H7105

Misc. Parts
(Includes the following:)
Modem Holder
Modem Lever
DSP Holder
Rear IR Lens

29H9234

Keyboard Assembly

Arabic

29H9076

Belgian

29H9074

Canadian French

29H9082

Danish

29H9073

Dutch

29H9071

French

29H9067

German

29H9065

Greek

29H9080

Hebrew

29H9077

Italian

29H9069

Japanese

29H9083

New World Spanish

29H9081

Norwegian

29H9075

Portuguese

29H9078

Russian

29H9084

Slovak

29H9293

Spanish

29H9072

Swedish of Finnish

29H9070

Swiss

46H5989

Turkish

29H9079

U.K. English

29H9064

U.S. English

29H9063

Keyboard Unit

Arabic

29H9048

Belgian

29H9406

Canadian French

29H9414

Danish

29H9405

Dutch

29H9403

French

29H9399

German (Black)

29H9397

Greek

29H9412

Hebrew

29H9409

Italian

29H9401

Japanese

29H9415

New World Spanish

29H9413

Norwegian

29H9407

Portuguese

29H9410

Russian

29H9416

Slovak

39H6979

Spanish

29H9404

Swedish of Finnish

29H9402

Swiss

46H5990

Turkish

29H9411

U.K. English

29H9396

U.S. English

29H9395

Search Keywords

Document Category

Hardware Maintenance Information

Date Created

01-08-96

Last Updated

02-04-99

Revision Date

03-03-2000

Brand

IBM ThinkPad

Product Family

ThinkPad 760EL/ELD

Machine Type

9547

Model

Various

TypeModel

Retain Tip (if applicable)
