Aptiva - Intel Video Phone With ProShare Technology
Applicable to: United States
Standards-Based Consumer Video Phone Software for PC OEM Integration Intel Video Phone with ProShare Technology is a low-cost, early-to-market video conferencing product that communicates over standard telephone lines. The application conforms to H.324 standards, ensuring interoperability with other products conforming to the H.324 standards marketed by other vendors. Engineered for OEM platform integration, Intel Video Phone delivers video compression, audio compression and full duplex speakerphone via the Intel Pentium® processor, reducing hardware costs for manufacturers. The Intel Video Phone is supplied in two versions:
Send/Receive software version which enables two-way audio/video interaction; this requires a Video Phone-ready modem, a video capture card and a camera.
Receive-Only software version which enables two-way audio but one-way video interaction; this requires just a Video Phone-ready modem.
Product Features and Benefits
H.324 standards compliant for interoperability
Simple connection model -- voice-call-first and data-call-first modes supported

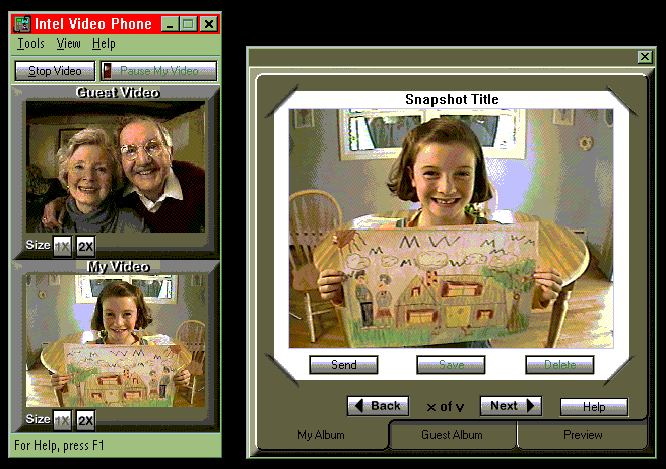

Local and remote video windows with two sizes -- 176x132 original and 352x264 expanded
Up to 12fps resolution video quality** -- adjustable for frame rate vs. clarity
High-resolution still-image capture, display, storage and remote transfer at 320x240 pixels
Full-duplex speakerphone with simultaneous video**
Utilizes Windows 95 application interfaces (TAPI, VFW)
Integrates with OEM provided TAPI dialer
Support for OEM customization
Software-based processing minimizes OEM hardware costs
Specifications
Standards Compliance
H.263 QCIF video compression
G.723 audio compression
H.223 framing
H.245 control protocol
System Requirements
Qualified motherboard with PCI-based chip set*
Full-duplex audio codec*
16MB RAM
640x480 VGA display with 256-color support minimum VfW YUV-12 compliant video capture board* such as the Intel Video Capture Card
Video Phone-ready modem* such as the Intel 28.8 DSVD Modem
Windows 95 or later
CPU Specifications
|
|
120 MHz Intel Pentium Processor |
133 MHz Intel Pentium Processor |
150 MHz Intel Pentium Processor |
166 MHz Intel |
|
Receive-Only support |
XX |
XX |
XX |
XX |
|
Send/Receive support |
XX |
XX |
XX | |
|
Video performance** |
Up to 12 fps |
Up to 12 fps |
Up to 12 fps |
Up to 12 fps |
|
Speakerphone support** |
Half Duplex |
Half Duplex |
Half Duplex |
Full Duplex |
|
Product |
Description |
|
Send/Receive Intel Video Phone |
Intel Video Phone software on CD-ROM. Includes: application, OEM install, Online Help, H.324 stack. |
|
Receive-Only Intel Video Phone |
Receive-Only Intel Video Phone software on CD-ROM. Includes: application, OEM install, Online Help, H.324 stack, send/receive upgrade software |
* Consult your Intel sales representative for a current list of qualified hardware.
** Actual values may vary based upon system configuration and performance.
|
