Service Hints & Tips |
Document ID: GSMH-3FHLRM |
IBM IntelliStation Z Pro - Type 6899 Pentium Pro 200 MHz system board
Applicable to: World-Wide
IntelliStation Type 6899 - Pentium Pro 200 MHz System Board:

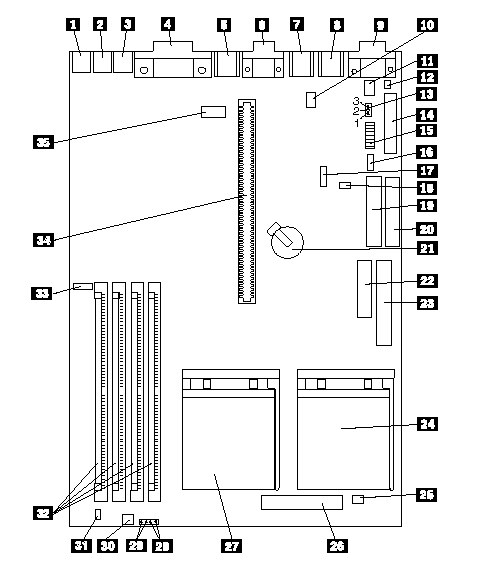

IntelliStation Type 6899 - Pentium Pro 200 MHz System Board Locations:
|
1 |
Audio line out |
|
2 |
Audio line in |
|
3 |
Microphone |
|
4 |
Port connector |
|
5 |
USB (Universal Serial Bus) connector |
|
6 |
Serial port A connector (Serial port B connector located on back of base frame) |
|
7 |
Mouse connector |
|
8 |
Keyboard connector |
|
9 |
Infrared connector |
|
10 - J15 |
Wake-Up on LAN |
|
11 |
5 V auxiliary connector |
|
12 |
Power switch connector |
|
13 - J8 |
CMOS clear (password) jumper |
|
14 |
Diskette drive connector |
|
15 |
Switch set (SW1) |
|
16 |
SCSI LED connector |
|
17 - J13 |
Modem wake-up |
|
18 - J11 |
Modem wake-up |
|
19 |
Primary IDE connector |
|
20 |
Secondary IDE connector |
|
21 |
Battery |
|
22 |
Power connector (3.3 V) |
|
23 |
Main power connector |
|
24 |
Second microprocessor socket |
|
25 - J12 |
Fan connector (second microprocessor) |
|
26 |
Voltage Regulator Module connector (second microprocessor) |
|
27 |
Primary microprocessor socket |
|
28 |
Power LED connector |
|
29 |
Hard disk drive LED connector |
|
30 |
Fan connector, front panel |
|
31 |
Internal speaker connector |
|
32 |
DIMM connectors |
|
33 - J34 |
CD-ROM audio connector |
|
34 |
Riser card connector |
|
35 - J20 |
Serial port B system board connector |

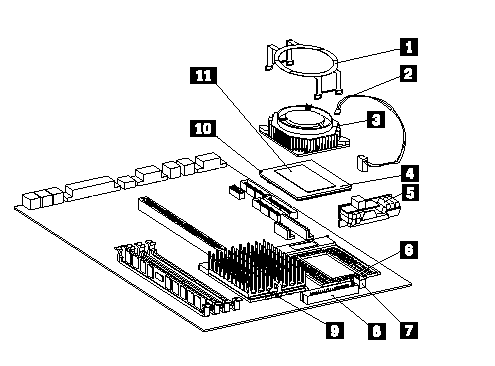

IntelliStation Type 6899 - Pentium Pro 200 MHz Second Microprocessor Option:
Some models come with two microprocessors.
|
1 |
Fan-sink retaining clip |
|
2 |
Fan-sink power cable |
|
3 |
Fan-sink |
|
4 |
Secondary microprocessor |
|
5 |
Voltage Regulator Module (VRM) |
|
6 |
Secondary microprocessor socket |
|
7 |
Fan-sink power cable connector |
|
8 |
VRM connector |
|
9 |
Primary microprocessor socket |
|
10 |
Pin 1 location |
|
11 |
Heat spreader |
IntelliStation Type 6899 - Pentium Pro 200 MHz Switch/Jumper Settings:
The following tables contain the switch and jumper setting information. (D) indicates the default setting.
Processor Speed Switch Setting (SW1 1-6):
|
Speed |
SW1-1 |
SW1-2 |
SW1-3 |
SW1-4 |
SW1-5 |
SW1-6 |
|
200 MHz |
On |
Off |
On |
On |
Off |
N/A |
Additional Switch Settings (SW1 7-8):
|
Description |
SW1-7 |
SW1-8 |
|
SerialB |
On (D) |
N/A |
|
SerialB |
Off |
N/A |
|
Normal |
N/A |
Off (D) |
|
Read-Only |
N/A |
On |
Jumper Settings:
|
Jumper |
Setting |
Description |
|
J8 |
1-2 (D) |
Password Enabled |
|
