Aptiva - 2134/2144/2168/2176 - How to connect CD-ROM audio cable
Applicable to: World-Wide

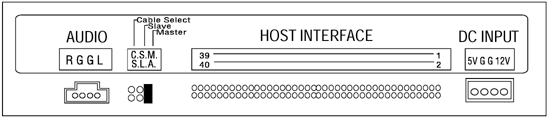

Locate the four pin audio cable connection on the back of the CD-ROM drive, this is normally labeled AUDIO or CD-AUDIO, and connect one end of the audio cable.

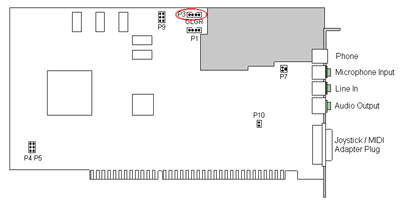

On the Mwave card locate socket P3, circled in red below, and connect the other end of the audio cable.
|
