Service Hints & Tips

Document ID: BMOE-425NZT

TP 1400 - Modem Connector (RJ11 Cable Assembly) Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Modem Board Cover and Modem Board
• Keyboard
• Hard Disk Drive and HDD Heatsink
• CPU Heatsink
• LCD Assembly
• Upper Cover (Keyboard Bezel)

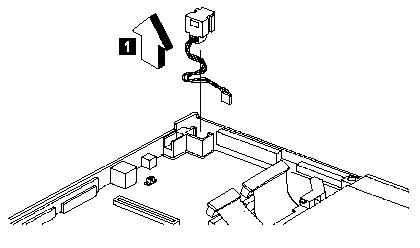

Note: Before removing the modem phone jack, make sure that the other end has been disconnected from the modem board.

	Search Keywords
	Document Category	Hardware Installation/Configuration, Hardware Maintenance Information
	Date Created	11-11-98
	Last Updated	12-11-98
	Revision Date
	Brand	IBM ThinkPad
	Product Family	ThinkPad i Series 1400
	Machine Type	2611
	Model	Various
