Netfinity 5000 - Front Panel Indicators
Applicable to: World-Wide

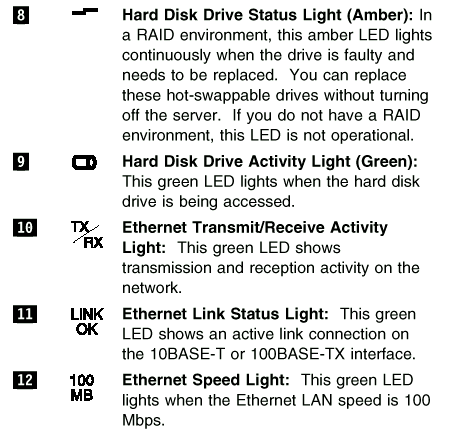

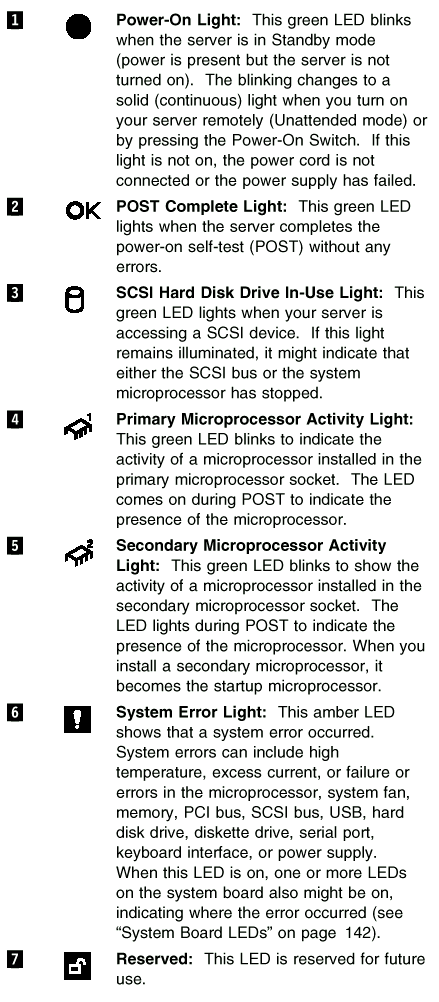

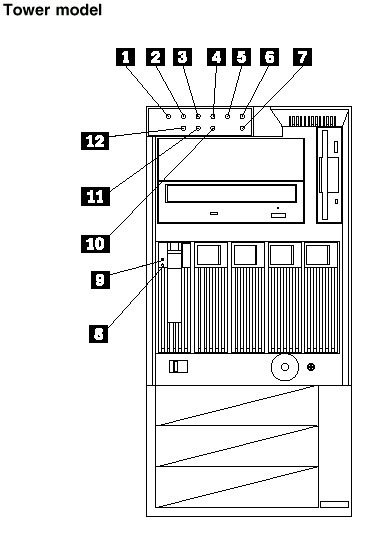

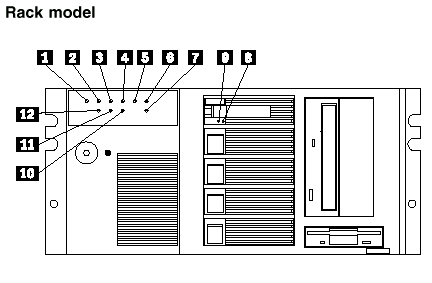

Front Panel Indicators: The following illustrations identify the indicators located on the front panel of the server.

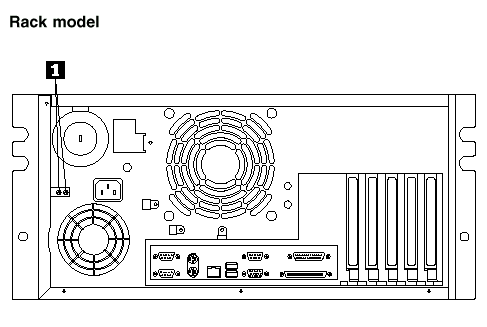

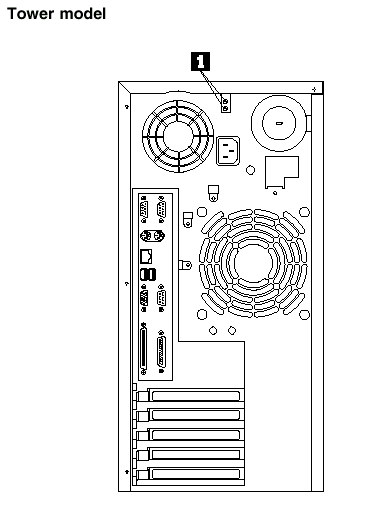

Back Panel Indicators: The following illustrations identify the indicators located on the back of the server.
These green LEDs indicate a power good status for each of the 175-watt modules in the power supply. If any power supply light is not illuminated when the Power-On Light on the front of the server is on, there is a problem with that power supply. The power supply shipped with the server has two lights, one for each module inthe power supply. The optional additional power supply has one power module and one green LED. See Power Supplies for more information about the power supplies.
|
