Parts Information |
Document ID: JWOE-3KXP2T |
Aptiva - 2142 System unit (exterior) FRU part number list
Applicable to: China, Hong Kong, Japan, Australia, Canada, United States, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Spain, Sweden, United Kingdom

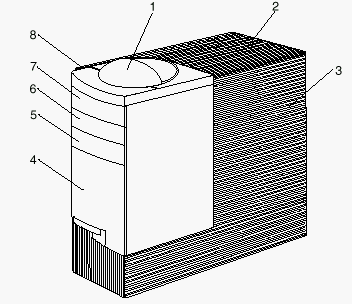

Assembly 3: Machine Type 2142 System Unit -Exterior (SL-A)
|
Asm- Index |
FRU Part Number |
Units |
Description |
|
3-1 |
Type 2142 Exterior | ||
|
-1 |
12J6477 |
1 |
Cap/Handle Assembly |
|
-NS |
12J6295 |
1 |
Panel Switch/LED |
|
-2 |
12J6474 |
1 |
Top Cover |
|
-3 |
12J6475 |
1 |
Side Cover |
|
-4 |
00K8350 |
1 |
Panel Assembly |
|
-NS |
12J5548 |
1 |
Main bezel |
|
-5 |
12J5550 |
1 |
3.5 and 5.25-In Blank Bezel |
|
-6 |
12J5550 |
1 |
3.5 and 5.25-In Blank Bezel |
|
-7 |
12J5550 |
1 |
3.5 and 5.25-In Blank Bezel |
|
-NS |
12J6297 |
1 |
ZIP Bezel Assembly |
|
-8 |
12J5546 |
1 |
Access cover Assembly |
|
-NS |
12J6294 |
1 |
Feet (Packet of 4) |
|
