Service Hints & Tips |
Document ID: LWIK-3PMPYW |
TP 765D/L - 2050 Keyboard Cable
Applicable to: World-Wide
2050 Keyboard Cable
Top Cover (1060)
Keyboard Unit (1070)
Keyboard Card (1170)
Palm Rest (2010)
Palm Rest Rear Cover (2020)
Keyboard Card (2030)
Keyboard (2040)
|
Notes: | |
|
1. |
When pulling the lever off the foot 1 , separate the lower part of the lever from the foot by inserting a pointed device through the hole in the foot. |
|
2. |

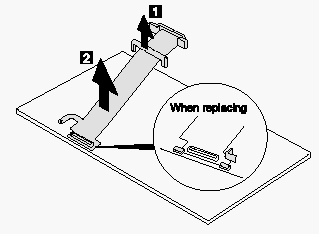

When removing the latch from the keyboard base 1 , push both ends of the latch simultaneously. |
|
3. |
When replacing the keyboard cable, place the cable correctly, as shown by the artwork in the circle. |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
10-12-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 765L, ThinkPad 765D | |
|
Machine Type |
9546, 9547 | |
|
Model |
Various | |
|
