Parts Information |
Document ID: DETR-44HKF6 |

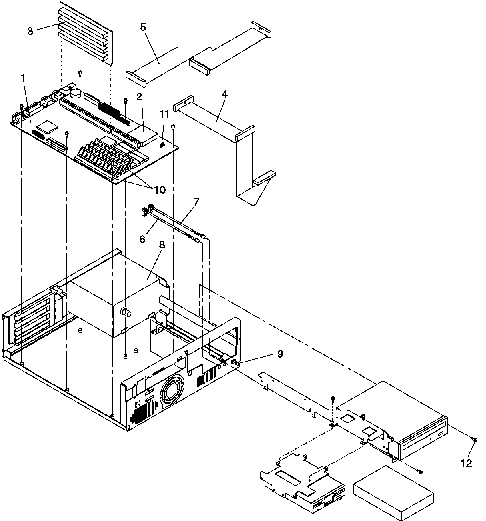

Aptiva - 2144 (SL-C) parts - System unit interior
Applicable to: World-Wide
|
2-1 |
System Boards Note: See the Appendix, "Model/Monitor Configurations and FRU Part Numbers" in topic A.0 of the HMM for model specifications. All system board FRUs are shipped without processors, cache memory modules, video DRAM modules, or SIMMs. When upgrading or replacing a system board, any non-failing processor, cache memory modules, video DRAM modules, and/or SIMMs must be removed from the original system board and reinstalled on the FRU system board. | ||
|
-1 |
Type C-1 system board: | ||
|
-1 |
96G0217 |
1 |
512KB Video DRAM, 1 Video DRAM socket, 0KB Cache, 0 cache sockets, 2 SIMM sockets |
|
-1 |
96G0908 |
1 |
1MB Video DRAM, 0KB Cache, 0 cache sockets, 2 SIMM sockets |
|
-1 |
Type C-2 system board: | ||
|
-1 |
65G9583 |
1 |
1MB Video DRAM, 0KB or 128KB Cache, 9 cache sockets, 4 SIMM sockets, VESA Local Bus connector |
|
Processors: | |||
|
-2 |
71G0790 |
1 |
486SX 25MHz processor module |
|
-2 |
71G0791 |
1 |
486SX 33MHz processor module |
|
-2 |
71G0792 |
1 |
486SX2 50MHz processor module |
|
-2 |
82G5058 |
1 |
486DX 33MHz processor module |
|
-2 |
71G0794 |
1 |
486DX2 50MHz processor module |
|
-2 |
71G0795 |
1 |
486DX2 66MHz processor module |
|
-3 |
10H2830 |
1 |
Riser Card, 4 Connector AT (Machine Type 2144) |
|
-NS |
10H2831 |
1 |
Riser Card, 4 Connector VESA Local Bus (Machine Type 2144) |
|
-4 |
93F2394 |
1 |
Hard Disk Drive Ribbon Cable |
|
-5 |
93F2395 |
1 |
Diskette Drive Ribbon Cable |
|
-6 |
93F2388 |
1 |
Indicator LED and Cable, Hard Drive |
|
-7 |
93F2389 |
1 |
Indicator LED and Cable, Power |
|
Factory-Installed Modems: | |||
|
-NS |
04H5783 |
1 |
Data/FAX/Modem Adapter Card (2400 bps/9600 bps/4800 bps) |
|
-NS |
04H5788 |
1 |
Data/FAX/Modem Adapter Card (14400 bps) |
|
-NS |
04H5773 |
1 |
Modem Data/FAX/Voice Adapter Card (14400 bps) |
|
-NS |
04H5934 |
1 |
Modem Wake Up on Ring cable |
|
-NS |
10H3199 |
1 |
FAX/voice modem sound cable |
|
-8 |
73G4526 |
1 |
145-W Switch-selectable LV/HV |
|
-9 |
60G2258 |
1 |
Power Switch to System Board Cable Assembly |
|
-10 |
92G7540 |
1 |
SIMM, 4MB, 72-Pin Gold |
|
-10 |
92G7542 |
1 |
SIMM, 8MB, 72-Pin Gold |
|
-NS |
Type C-2 system boards: | ||
|
-NS |
10H3070 |
1 |
Cache Memory kit, 128KB (4 cache modules, plus 1 tag address module) |
|
-NS |
10H3094 |
1 |
Video Memory Module, 512KB DRAM (Type C-1 only) |
|
-NS |
93F0063 |
1 |
Lithium Battery (CR2032) |
|
-11 |
93F0067 |
1 |
Jumper, 2 position (Packet of 4) |
|
-12 |
93F0041 |
1 |
Packet (Mounting Screws) |
|
