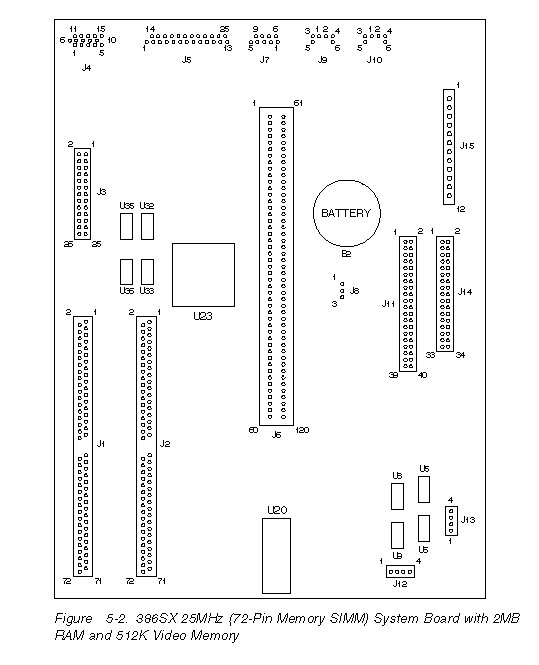

PS/1 - System Board Layout 386SX 25MHz, 2MB RAM, 512K VM
Applicable to: World-Wide
|
B2 |
Battery |
|
J1 |
72-PIN Memory SIMM Bank 1 |
|
J2 |
72-PIN Memory SIMM Bank 0 |
|
J3 |
Video Feature |
|
J4 |
Display/Signal |
|
J5 |
Parallel Port |
|
J6 |
RISER |
|
J7 |
Serial Port |
|
J8 |
Password Bypass |
|
J9 |
Mouse |
|
J10 |
Keyboard |
|
J11 |
Hard Disk |
|
J12 |
Beeper Bypass |
|
J13 |
Pins 1 and 2 - Power On LED |
|
J14 |
Diskette |
|
J15 |
Power |
|
U10 |
386SX Processor |
|
U20 |
BIOS |
|
U23 |
Math Coprocessor |
|
U5 |
512K x 9 System Memory |
|
U6 |
512K x 9 System Memory |
|
U8 |
512K x 9 System Memory |
|
U9 |
512K x 4 Video Memory |
|
U32 |
246k x 4 Video Memory |
|
U33 |
256K x 4 Video Memory |
|
U35 |
246K x 4 Video Memory |
|
U36 |
256K x 4 Video Memory |
|
Search Keywords |
| |
|
Hint Category |
Hardware Installation/Configuration, System Boards, Jumper/Switch Settings | |
|
