Service Hints & Tips |
Document ID: MNOK-3ZXQBK |
Aptiva - 2136 Removals and replacements - Identifying the parts of the system
Applicable to: World-Wide

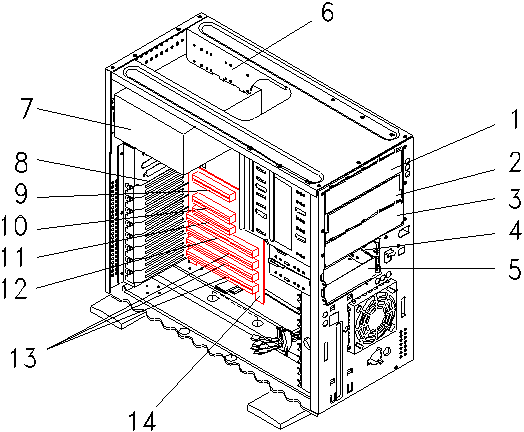

Figure 4- 1 The Parts of The System Unit
1.Bay 1. This bay can hold a 5.25-inch half-high drive, such as diskette, hard disk, tape, or CD-ROM drive.
2.Bay 2. This bay can hold a 5.25-inch half-high drive, such as diskette, hard disk, tape or CD-ROM drive.
3.Bay 3. This bay can hold a 5.25-inch half-high drive, such as diskette, hard disk, tape or CD-ROM drive.
4.Bay 4. This bay can hold a 3.5-inch slim drive, such as a diskette or tape drive.(with external access)
5.Bay 5. This bay can hold a 3.5-inch slim drive, such as a diskette or tape drive. (with external access)
6.Bay 6. This bay can hold a 3.5-inch slim drive, such as a diskette or tape drive. (No external access)
7.Power Supply. Capable of providing at lease 200 watts of power to the system unit.
8.Adapter Card Slots. Eight openings for adapter cards.
9.PCI Adapter Card Connector 1(PCI-1). Holds one PCI adapter card.
10.PCI Adapter Card Connector 1(PCI-2). Holds one PCI adapter card.
11.PCI Adapter Card Connector 1(PCI-3). Holds one PCI adapter card. This connector shares a slot with the AT-3
connector. If you install a card in this connector, you can not install a card in connector AT-3.
12.AT adapter card connector 3(AT-3). Holds an AT adapter card. This connector shares a slot with the PCI-3 connector.
If you install a card in this connector, you cannot install a card in connector PCI-3.
13.AT adapter card connector 4 to 6 (AT 4-6). Holds AT adapter cards.
14.Riser Card. Interface between main board and add-on adapter cards.
|
