Parts Information |
Document ID: GSMH-3DBDFA |
TP Dock 1 - Parts Listing
Applicable to: World-Wide
Parts Listing:

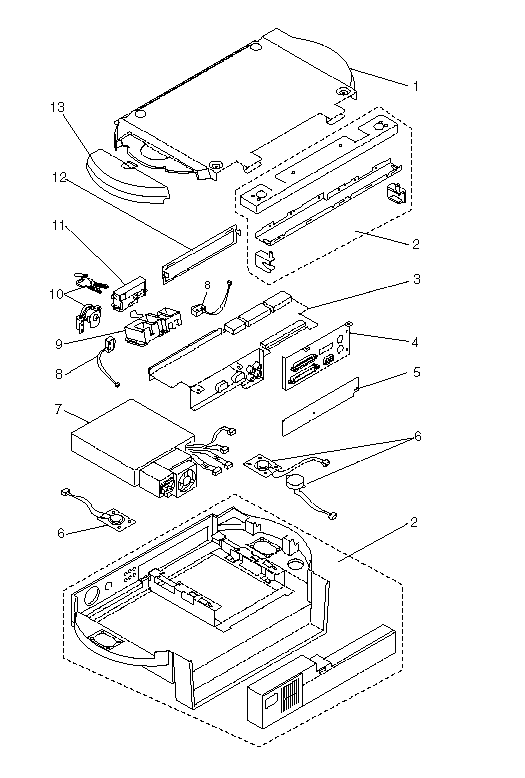

Dock I Unit:
|
Index | ||
|
1 |
Bottom Cover |
66G3555 |
|
For Germany (mica gray) |
66G3556 | |
|
2 |
Main Cabinet |
66G3560 |
|
Main Cabinet For Germany (mica gray) |
66G3561 | |
|
3 |
Main Board |
66G3557 |
|
4 |
I/O Card |
66G3571 |
|
5 |
Audio Card |
66G3588 |
|
6 |
Speaker Right/Left, Buzzer |
66G3570 |
|
7 |
Power Supply Unit |
66G3559 |
|
8 |
Micro Switch Group |
66G3562 |
|
9 |
Security Feature Group |
66G3569 |
|
For Germany (mica gray) |
66G3572 | |
|
10 |
Key Lock Assembly |
66G3563 |
|
11 |
LED Assembly |
66G3568 |
|
12 |
Blank Bezel |
66G3564 |
|
For Germany (mica gray) |
66G3565 | |
|
13 |
Audio Cable Cover |
66G3566 |
|
For Germany (mica gray) |
66G3567 | |
|
Cable Group |
66G3572 | |
|
Miscellaneous Kit |
66G3573 |
Options and Adapters:
|
3278/3279 Emulation Adapter |
53F6424 |
|
Enhanced 5250 Emulation Adapter |
30F5384 |
|
PC Network Adapter |
8286171 |
|
PC Network Adapter Cable |
8286172 |
|
PC Network Adapter II |
72X8105 |
|
PC Network Baseband Adapter |
72X8101 |
|
SDLC Adapter |
8286099 |
|
Communication Adapter Cable |
8529274 |
|
Serial/Parallel Adapter |
8286147 |
|
Printer Cable |
8529214 |
|
Serial Adapter Cable |
8286170 |
|
Serial Adapter Connector |
8286194 |
|
Token Ring Adapter |
16F0463 |
|
Token Ring Adapter with RIPL |
83X7839 |
|
Token Ring 16/4 Adapter |
93F0334 |
|
Token Ring RIPL (module, for 93F0334) |
25F8887 |
|
Action Media II Display Adapter |
69F9731 |
|
Action Media II Capture Option |
69F9735 |
|
Action Media II Video Cable |
69F9737 |
|
Action Media II Audio/Video Capture Cable |
69F9736 |
|
Action Media II Display CD-ROM Cable |
69F9747 |
|
LAN Adapter for Ethernet |
92F0045 |
|
Video Connector/Cable |
66F3583 |
|
AD/VC Adapter |
66G3581 |
SCSI Hard Disk Drive:
|
80MB Drive |
56F8854 |
|
108MB Drive |
95F4748 |
|
216MB Drive |
95F4749 |
|
160MB Drive |
56F8851 |
|
320MB Drive |
85F0011 |
|
400MB Drive |
85F0012 |
|
1GB Drive (half-high) |
92F0089 |
|
Terminator, In-line (for 320/400MB) |
92F0142 |
Keyboard Cable and Mouse:
|
Keyboard Cable |
72X8537 |
|
Mouse |
61X8923 |
|
Mouse Ball and Pop-Off Retainer |
33F8461 |
|
Mouse Ball and Twist-Off Retainer |
33F8462 |
|
Miniature Mouse |
95F5723 |
Dock 1 Options:
|
Port Replicator Model I |
66G3574 |
|
Port Replicator Model II |
66G3575 |
|
Display Stand (black) |
66G3584 |
|
Internal CD-ROM Installation Kit |
66G3577 |
|
For Germany (mica gray) |
66G3578 |
|
Audio Cable |
66G3518 |
|
ThinkPad Hard Disk Installation Kit |
66G3576 |
|
Internal SCSI Cable |
66G3579 |
|
SCSI Hard Disk Tray |
66G3580 |
|
ThinkPad Hard Disk Drive (170 MB) |
66G5066 |
|
For Germany (mica gray) |
66G5085 |
|
ThinkPad Hard Disk Drive (340 MB) |
66G5068 |
|
For Germany (mica gray) |
66G5087 |
|
Diskette Drive |
66G5060 |
|
Diskette Drive Attachment Kit |
66G5069 |
Numeric Keypad:
|
Belgian |
95F5741 |
|
Canadian French |
95F5466 |
|
Danish |
95F5467 |
|
Dutch |
95F5467 |
|
French |
95F6313 |
|
German |
95F6314 |
|
Greek |
95F5467 |
|
Hebrew |
95F5741 |
|
Icelandic |
95F5467 |
|
Italian |
95F6316 |
|
Norwegian |
95F5467 |
|
Spanish |
95F6315 |
|
Spanish Speaking |
95F6315 |
|
Swedish/Finish |
95F5468 |
|
Swiss/French |
95F5711 |
|
Swiss/German |
95F5715 |
|
Turkish |
95F5467 |
|
U.K. English |
95F5741 |
|
U.S. English |
95F5741 |
|
