Netfinity 5500 M10 - System Parts Listing

64.797 bytes

Parts Information

Document ID: DDSE-469M2A

Netfinity 5500 M10 - System Parts Listing

Applicable to: World-Wide

Source: Hardware Maintenance Manual

System

Index

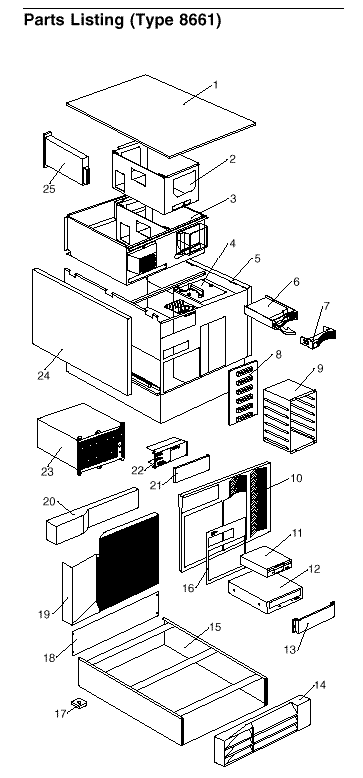

System (Netfinity Netfinity 5500-M10 - Type 8661)

FRU No.

1

Top Cover

12J3063

2

Processor Card Support Tray (Housing)

10L6971

3

Shuttle with Bracket

01K6998

4

Fan Assembly 92 mm with Connector and Bracket

01K6999

4

Short Blower Fan Assembly with Bracket

01K6988

4

Long Blower Fan Assembly with Bracket and Vane
(Models 11Y, 1RY, 2RY)

01K6990

4

Fan/Blower 3x Power Cable
(Models 11Y, 1RY, 2RY)

03K9168

5

Base Frame Assembly

01K6991

6

Hard Disk Drive

N/A

7

Hard Disk Drive Bezel (Black)

12J3072

8

DASD Backplane Board

76H6880

9

DASD 6-Drive Cage Assembly

01K6987

10

Front Bezel without Door Assembly

01K6997

11

1.44MB Diskette Drive, Black

76H4091

11

Diskette Holder Bracket

12J3065

11

Diskette Drive Signal Cable

03K9340

12

MKE CR-504 32x CD-ROM Drive, Black

02K1119

12

CD-ROM Signal Cable (IDE)

03K9338

13

5.25-Inch Blank Bezel

12J3073

14

3-U Front Bezel Assembly with Lock and Keys (Model 11Y, 31Y)

03K8798

15

3-U Enclosure Frame (Model 11Y, 31Y)

03K8797

16

Media and Switch Trim Panel

03K8773

17

Foot Pads, 4 each (Model 11Y, 31Y)

03K8800

18

3-U Blank Panel (Model 11Y, 31Y)

03K8799

19

DASD Door (Model 11Y, 31Y)

03K8778

20

Front Bezel Cap (Model 11Y, 31Y)

12J7041

21

Status Cover Lens

12J7031

22

Front LED

01K7001

23

400 Watt Hot Swap PFC Power Supply Assembly with Bracket

03K8774

24

Side Access Cover (Model 11Y, 31Y)

03K8776

25

Power AC Inlet Box

01K6995

128 MB ECC 3.3v REG DIMM (Option)

28L1015

256MB ECC 3.3v REG DIMM (Option)

01K7391

512MB ECC 3.3v REG DIMM (Option)

28L1016

2 GB Processor Card without Processor

61H0523

400 MHz Processor with 512 KB L2 Cache
(Models 11Y, 1RY)

11L1569

400 MHz Processor with 1 MB L2 Cache
(Model 2RY)

11L1571

450 MHz Processor 512 KB L2 Cache
(Model 31Y)

28L4557

450 MHz Processor 1 MB L2 Cache
(Model 3RY)

28L4558

450 MHz Processor 512 KB L2 Cache
(Model 4RY)

28L4557

Air Diffuser

01K7000

Cable Management Arm
(Models 1RY, 2RY, 3RY, 4RY)

12J3088

Cable Management Arm Bracket
(Models 1RY, 2RY, 3RY, 4RY)

12J3089

Door Hinge (Models 11Y, 31Y)

01K6637

Hot Swap Power Backplane Card with 5 Power Cables

01K6992

Interior LED and Speaker

01K7002

Keyboard with Cable
See "Keyboards".

N/A

Keylock with Keys and Pawl (Model 11Y, 31Y)

01K6641

Lock Linkage (Models 11Y, 31Y)

03K8777

Left and Right EIA Flange
(Models 1RY, 2RY, 3RY, 4RY)

01K6981

Lift Handle (Models 1RY, 2RY, 3RY, 4RY)

03K9069

Media Bracket

12J5681

Miscellaneous Parts Kit 1
- 32X5/16 Screws (4 each)
- M3.5X8 Plastite Screws (2 each)
- M3X5 CD/Bracket Screws (8 each)
M3.5X7 Processor Card Screws, (15 each)
- 6-32X3/16 Screws (8 each)
- 3.9ID Nylon Washers (2 each)
- EMC Springs (24 each)
- Lock Hole Plug (1 each)
- Cable Tie (1 each)
- Fan Grommet (4 each)

12J3079

Miscellaneous Parts Kit 2
- EMI I/O Gasket (1 each)
- EMI PCI/ISA I/O Gasket (1 each)

03K8782

Miscellaneous Parts Kit 3
- M3X5 Handle Screws (5 each)
- PCI Card/Housing to Shuttle Screws (2 each)
- Insulator with Light Pipes (5 each)
- Hot Swap PCI Card Clamps (4 each)
- Hot Swap PCI Card Guides (5 each)
- Hot Swap PCI I/O Card Guides (6 each)
- ISA I/O Card Guide (1 each)
- PCI Filler Plate Bracket (4 each)
- Hot Swap Retention Handles (4 each)
- Switch Card Mounting to Chassis (1 each)

01K6982

Miscellaneous Rack Kit 4 (Models 1RY, 2RY, 3RY, 4RY)
- M6X16 Screws, Slide/Bracket to Rack (16 each)
- M3.5X7 (EIA FLANGES TO CHASSIS SCREWS) (6 each)
- M4X8 Screws, Slides to Chassis (8 each)
- M6 Nut Clips, Slide/Bracket to Rack (6 each)
- M6 Nuts, Flange Arm to Bracket (2 each)

12J3090

Mouse (Model 11Y, 31Y)

76H0889

PCI Switch Card

03K8982

Power Supply Bracket

36L9535

Power Supply Filler Plate

01K6996

Power Switch (Button) Assembly with Bracket
(Models 11Y, 1RY, 2RY)

01K7003

Processor Terminator Card

94H0598

Rack Slide/Bracket Assembly
(Models 1RY, 2RY, 3RY, 4RY)

03K8775

SCSI Hard Disk Drive Cable (3X)

12J3711

SCSI Hard Disk Drive to Backplane Cable
(Models 1RY, 2RY, 3RY, 4RY)

03K9342

SCSI to Rear Panel Cable (Option only)
(Models 1RY, 2RY)

03K9342

Side Cover Retention Bracket
(Model 11Y, 31Y)

12J7040

Slot 2 Goalpost

36L9544

System Battery

33F8354

System Board without Memory and Processor Card

36L9482 (replaces
01K7068 and
01K7215)

System Board Shield

03K9054

System Service Label

28L0696

Token Ring PCMCIA Card, option

85H3656

Token Ring Cable, option

03K9323

Voltage Regulator Card

20L1010
