Service Hints & Tips |
Document ID: GKEY-3JSCPA |
TP 765 - 1040 Hard Disk Drive
Applicable to: World-Wide
1040 Hard Disk Drive
Attention Do not drop or apply any shock to the hard disk drive. The hard disk drive is sensitive to physical shock. Incorrect
handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, have the user make a
backup copy of all the information on the hard disk. Never remove the hard disk drive while the system is operating or is in suspend
mode.

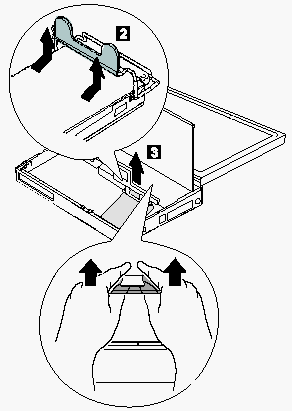

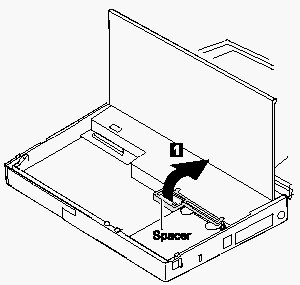

Note: Remove the hard disk drive exactly as shown in the figure.
Do not apply any extra force to the hard disk drive when removing it.
|
Note: |
After replacing the hard disk drive, latch the removal strap into the correct position. |
|
