Service Hints & Tips |
Document ID: JWOE-3KYHLS |
Aptiva - 2140/2142 System board layout (Type A-1)
Applicable to: United States, Canada, Japan, Italy, United Kingdom, France, Germany, China, Hong Kong, Denmark, Spain, Netherlands, Sweden, Norway, Australia, Finland
System Board Layout - Type A-1

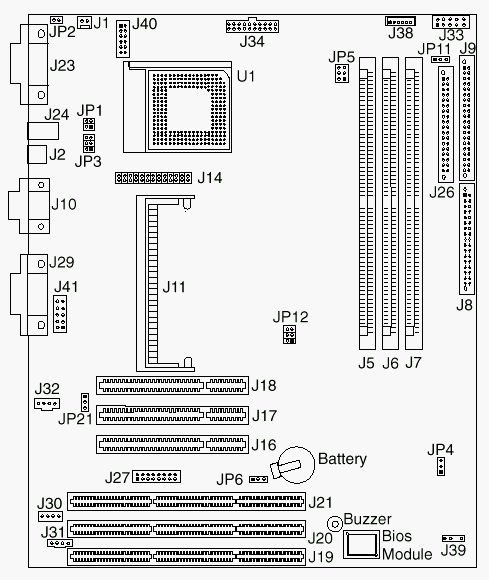

Figure 5-1. System Board Type A-1
System Board Locations - Type A-1
|
J1 |
Fan connector |
|
J2 |
USB connectors (top=USB1; bottom=USB0) |
|
J3 |
Internal VGA connector |
|
J5 |
DIMM connector (Bank 2) |
|
J6 |
DIMM connector (Bank 1) |
|
J7 |
DIMM connector (Bank 0) |
|
J8 |
Primary Hard Disk IDE (Hard Disk 1, Hard Disk 2) |
|
J9 |
Secondary Hard Disk IDE (Hard Disk 3 or CD/DVD-ROM, Hard Disk 4) |
|
J10 |
Monitor signal connector |
|
J11 |
SO-DIMM socket (video upgrade) |
|
J14 |
VESA video feature connector |
|
J16 |
PCI 3 connector |
|
J17 |
PCI 2 connector |
|
J18 |
PCI 1 connector |
|
J19 |
ISA 3 connector |
|
J20 |
ISA 2 connector |
|
J21 |
ISA 1 connector |
|
J23 |
Parallel/Serial Port connector (top=parallel; bottom=serial) |
|
J24 |
Mouse/Keyboard connector (top=mouse; bottom=keyboard) |
|
J26 |
Diskette drive connector |
|
J27 |
AC-3 connector |
|
J29 |
Multimedia connectors (top=MIDI/Joystick; bottom=audio out,in,mic) |
|
J30 |
CD/DVD-ROM audio connector |
|
J31 |
TV-In connector |
|
J32 |
Modem audio-In connector |
|
J33 |
Media Console connector (Type 2142 only) |
|
J34 |
Power connector |
|
J38 |
Power/hard disk LED connector |
|
J39 |
External speaker jumper/connector (Normal: 1-2) |
|
J41 |
Audio amplifier connector |
|
JP1 |
Processor type (Normal: 1-3, 2-4) |
|
JP2 |
Processor type (Normal: short) |
|
JP3 |
Core/Bus Frequency Ratio (See Figure 5-2 on page 5-4) |
|
JP4 |
Internal VGA (Normal: 1-2) |
|
JP5 |
Internal VGA Clock and INTA# Select (Normal: 1-3, 2-4) |
|
JP6 |
CMOS, Power-on Password Reset (Normal: 1-2, Clear: 2-3) |
|
JP11 |
Diskette Write (Enable: 1-2, Disable: 2-3) |
|
JP12 |
CPU BUS Frequency (Normal: 1-2, 3-4) |
|
JP21 |
CS4610 Interrupt (Normal: 1-2) |
|
U1 |
Processor |
|
