Service Hints & Tips |
Document ID: LWIK-3XPHMH |

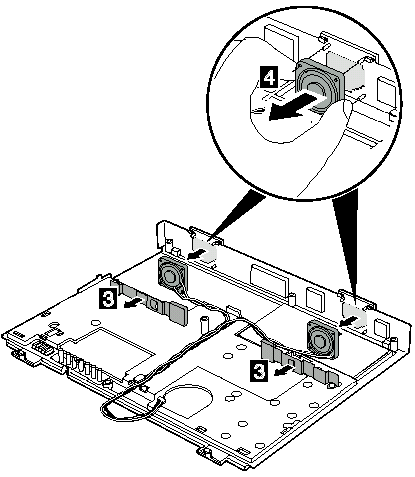

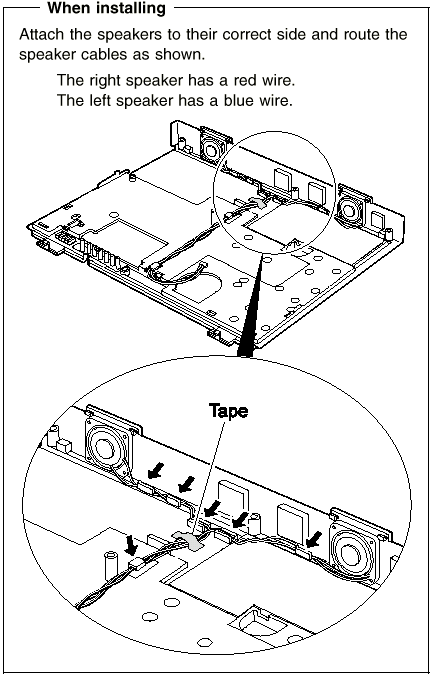

TP 380Z - 1050 Keyboard and speaker removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1020)

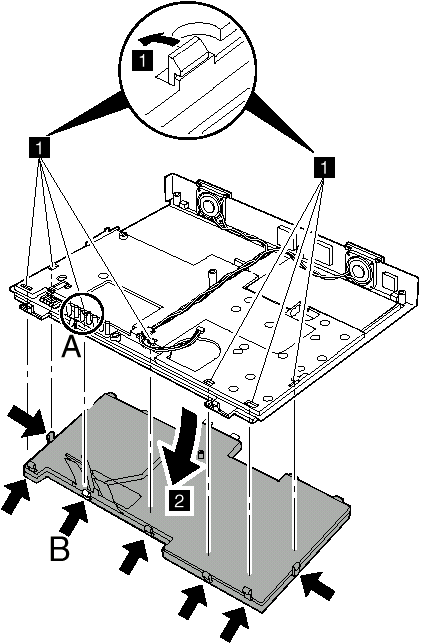

Keyboard Unit (1040)
Important: When you release latch B, be careful not to apply any force to area A (lenses for status indicators).
|
