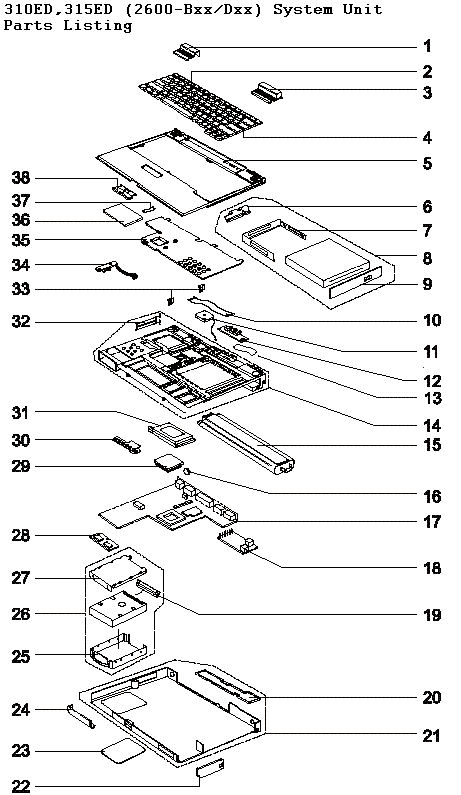

TP 310E/ED,315ED - FRU parts listing (for Axx/Bxx/Cxx/Dxx/Exx/Fxx models)
Applicable to: World-Wide
|
Item # |
Description |
FRU # |
|
1 |
Hinge cover (L) |
05K4870 |
|
2 |
TrackPoint rubber cap | |
|
3 |
Hinge cover (R) |
05K4871 |
|
4 |
Keyboard (Japan) (with TrackPoint rubber cap) |
11J8608 |
|
Keyboard (Germany) (with TrackPoint rubber cap) |
11J8609 | |
|
Keyboard (Slovakia) (with TrackPoint rubber cap) |
12J0504 | |
|
Keyboard (Portugal) (with TrackPoint rubber cap) |
11J8622 | |
|
Keyboard (Netherlands) (with TrackPoint rubber cap) |
11J8612 | |
|
Keyboard (Hungary) (with TrackPoint rubber cap) |
12J0506 | |
|
Keyboard (France) (with TrackPoint rubber cap) |
11J8610 | |
|
Keyboard (Italy) (with TrackPoint rubber cap) |
11J8611 | |
|
Keyboard (Czech) (with TrackPoint rubber cap) |
12J0507 | |
|
Keyboard (Russia) (with TrackPoint rubber cap) |
12J0503 | |
|
Keyboard (Spain) (with TrackPoint rubber cap) |
11J8614 | |
|
Keyboard (US) (with TrackPoint rubber cap) |
11J8606 | |
|
Keyboard (U.K.) (with TrackPoint rubber cap) |
11J8607 | |
|
Keyboard (Denmark) (with TrackPoint rubber cap) |
02K4322 | |
|
Keyboard (Norway) (with TrackPoint rubber cap) |
02K4323 | |
|
Keyboard (Sweden/Finland) (with TrackPoint rubber cap) |
02K4324 | |
|
Keyboard (Swiss) (with TrackPoint rubber cap) |
02K4325 | |
|
Keyboard (Belgium) (with TrackPoint rubber cap) |
02K4326 | |
|
5 |
Upper base |
05K4865 |
|
6 |
Diskette drive FPC cable |
12J0522 |
|
CD-ROM drive FPC cable |
05K2649 | |
|
7 |
Diskette drive bracket |
12J0520 |
|
CD-ROM drive bracket |
05K4878 | |
|
8 |
Internal diskette drive module assembly |
11J8570 |
|
Internal CD-ROM drive module assembly label) |
05K8865 | |
|
9 |
Diskette drive bezel |
12J0524 |
|
CD-ROM drive bezel |
05K4879 | |
|
10 |
- | |
|
11 |
Fan |
05K4605 |
|
12 |
Audio connector board (with Mylar) |
11J8584 |
|
13 |
Audio connector board FPC cable |
11J8585 |
|
14 |
Chassis (with speaker, LCD cover switch, PCMCIA door and Mylar) |
05K4655 |
|
15 |
Battery pack (NiMH) (with information label) |
11J8604 |
|
16 |
Backup battery |
11J8591 |
|
17 |
System board (without charger, CPU, PCMCIA socket and Mylar) |
10L0892 |
|
18 |
Charger board (with Mylar) |
11J8582 |
|
19 |
Hard disk drive module connector board |
11J8583 |
|
20 |
I/O door |
05K4867 |
|
21 |
Lower base (with I/O door and rubber foot, without information label, TrackPoint board and TrackPoint buttons) |
05K4866 |
|
22 |
Battery pack door |
05K4868 |
|
23 |
DIMM door (with screw) |
05K5220 |
|
24 |
Hard disk drive door |
05K4869 |
|
25 |
Hard disk drive module lower cover plate (for 12.7 mm high hard drive 11J8625 use) (2600-EXX) |
12J0512 |
|
Hard disk drive module lower cover plate (for 9.5mm high hard drive 05K8881 and 05K8862 use) |
05K4606 | |
|
26 |
2.1GB hard disk drive module assembly |
05K8881 |
|
2.1GB hard disk drive module assembly (2600-Exx) |
11J8625 | |
|
3.0GB hard disk drive module assembly |
05K8862 | |
|
27 |
Hard disk drive module upper cover plate (with information label and inside Mylar) |
11J8568 |
|
28 |
DIMM 16 MB EDO |
11J8602 |
|
DIMM 32 MB EDO |
11J8603 | |
|
2 |
Intel P55C-166 CPU, MMX |
10L0870 |
|
Intel P55C-150 CPU, MMX (2600-EXX) |
05K3601 | |
|
30 |
Keyboard connector board (with Mylar) |
11J8586 |
|
31 |
PCMCIA slots assembly |
11J8634 |
|
32 |
- | |
|
33 |
- | |
|
34 |
Battery connector board (with cable) |
11J8588 |
|
35 |
Thermal plate |
05K4604 |
|
36 |
TrackPoint board (with Mylar) |
11J8587 |
|
37 |
TrackPoint board FPC cable |
12J0497 |
|
