Netfinity 5000 - Video Port Connector
Applicable to: World-Wide
Video Port Connector
The video port is where you can attach a video monitor to your Netfinity 5000. Your server provides a 15-pin video port connector.

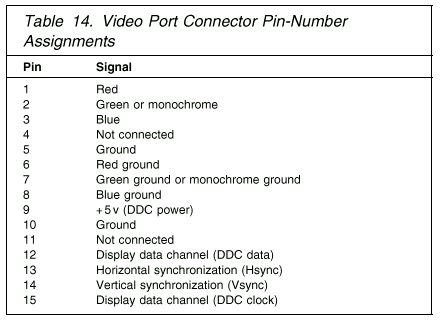

Table 14 shows the pin-number assignments for the video port connector.
|
