TP 390,390E,1720 - VR Board ASM 13.3" Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery ASM
• Hard Disk Drive
• Combo Bay
• Keyboard
• LCD Bezel ASM 13.3"
• Speaker ASM 13.3"

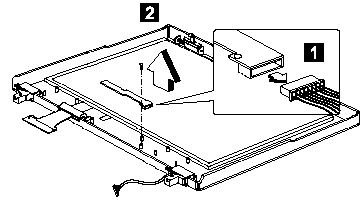

To remove the VR board ASM:

1. Disconnect the power cable from the VR board.

2. Carefully remove the VR board from the display panel.

Step	Size (Quantity)	Head & Color	Torque
2	M2 x 4L (1)	Flat head, silver	1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.
