IBM PC330/PC350 - (Type 65x6) Pentium 133/166 MHz System Board
Applicable to: World-Wide
This system board is for models 6XX, 7XX, 8XX, 9XX.
See ¿PC 330/350 Series (Type 65X6) - Pentium 75/90/100 MHz System Board— for 3XX, 4XX, and 5XX models.

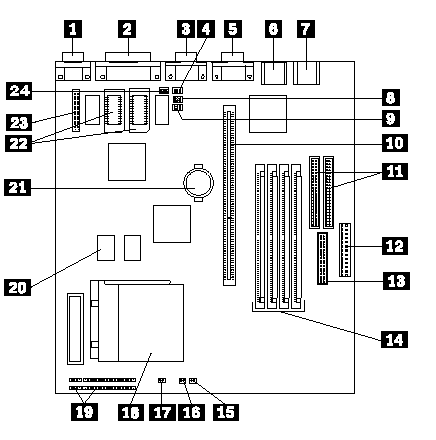

PC 330/350 Series (Type 65X6) - Pentium 133/166 MHz System Board Locations:
|
1 |
Video Port |
|
2 |
ECP/EPP Parallel Port |
|
3 |
Serial (B) Port |
|
4 - J4K2 |
Configuration Jumpers |
|
5 |
Serial (A) Port |
|
6 |
Mouse Port |
|
7 |
Keyboard Port |
|
8 - J4J2 |
Configuration Jumpers |
|
9 - J4J1 |
Configuration Jumpers |
|
10 |
ISA/PCI Riser Connector |
|
11 |
Enhanced IDE Connectors |
|
12 |
Primary Input Power Supply |
|
13 |
Diskette Connector |
|
14 |
Four SIMM Sockets (Two Banks) |
|
15 |
Power-On LED Connector |
|
16 |
Hard Disk Activity LED Connector |
|
17 |
Auxiliary Fan Connector |
|
18 |
Processor Socket (7) |
|
19 |
Speaker Connector |
|
20 |
256 KB L2 Cache Sockets |
|
21 |
Battery |
|
22 |
1MB Video Memory Sockets (Optional) |
|
23 |
VESA Feature Connector |
|
24 - J4K1 |
Configuration Jumpers |
See ¿PC 330/350 Series (Type 65X6) - Pentium 133/166 MHz Jumper Settings— for jumper and switch settings.
PC 330/350 Series (Type 65X6) - Pentium 133/166 MHz Jumper Settings:
The following tables contain the jumper setting information. (D) indicates the default setting.
Processor Speed - J4J1, J4J2, J4K1:
|
Processor |
J4J1 |
J4J2 |
J4K1 |
|
75 MHz |
Pin 2-3 |
Pin 2-3 |
Pin 2-3 |
|
90 MHz |
Pin 2-3 |
Pin 2-3 |
Pin 1-2 |
|
100 MHz |
Pin 1-2 |
Pin 2-3 |
Pin 1-2 |
|
120 MHz |
Pin 2-3 |
Pin 2-3 |
Pin 1-2 |
|
133 MHz |
Pin 1-2 |
Pin 2-3 |
Pin 1-2 |
|
150 MHz |
Pin 2-3 |
Pin 1-2 |
Pin 1-2 |
|
166 MHz |
Pin 1-2 |
Pin 1-2 |
Pin 1-2 |
CMOS Setup Access and ISA Bus Speed - J4K1:
|
Jumper |
Position |
Description |
|
J4K1 |
1-2 |
1/4 PCI (D) |
|
J4K1 |
2-3 |
1/3 PCI |
|
J4K1 |
4-5 |
Enabled (D) |
|
J4K1 |
5-6 |
Disabled |
CMOS and Power-on Password - J4K2:
|
Jumper |
Position |
Description |
|
J4K2 |
1-2 |
Normal (D) |
|
J4K2 |
2-3 |
Reset CMOS |
|
J4K2 |
4-5 |
Normal (D) |
|
J4K2 |
5-6 |
Reset Password |
BIOS Flash Recovery - J4A2:
|
Jumper |
Position |
Description |
|
J4A2 |
1-2 |
Normal (D) |
|
J4A2 |
2-3 |
Flash Enabled |
|
J4A2 |
4-5 |
Reserved |
|
