TP 390E - LCD FRU parts listing

Applicable to: World-Wide

LCD Unit Parts Listing

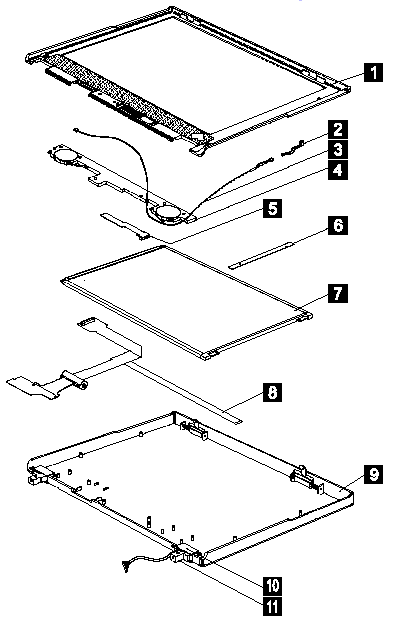

12.1" LCD ASM Parts Listing

Index

System Unit

FRU Number

1

LCD BEZEL ASM (12.1" TFT)

05K5469

2

MICROPHONE ASM W/ HOLDER

05K5477

3

CABLE ASM FOR SPK/MIC/VR BOARD

05K2818

4

SPEAKER ASM (12.1"/13.3")

05K5467

5

VR BOARD ASM (12.1"/13.3")

30L2576

6

LCD INVERTER (12.1" TFT)

10L1151

7

LCD PANEL ASM (12.1" TFT)

05K9370

8

LCD FPC ASM (12.1" TFT)

05K2761

9

LCD REAR COVER ASM (12.1" TFT)

05K6206

10

HINGE CAP L,R (12.1"/13.3")

05K5466

11

HINGE L,R (12.1"/13.3")

05K5465

LCD MISC PARTS
(LCD latch (L,R), Spring,
Brightness/Contrast knob for
12.1"/13.3", Brightness/Contrast knob
for 14.1", LCD bracket for 13.3" only)

05K5488

LG/IBM Logo Kit

05K6044

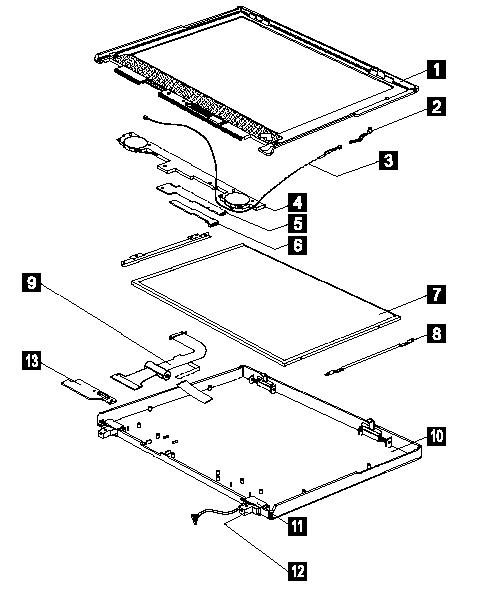

13.3" LCD ASM Parts Listing

Index

System Unit

FRU Number

1

LCD BEZEL ASM (13.3" TFT)

05K5471

2

MICROPHONE ASM W/ HOLDER

05K5477

3

CABLE ASM FOR SPK/MIC/VR BOARD

05K2818

4

SPEAKER ASM (12.1"/13.3")

05K5467

5

LCD INVERTER (13.3" TFT)

10L1203

6

VR BOARD ASM (12.1"/13.3")

30L2576

7

LCD PANEL ASM (13.3" TFT)

05K9372

8

LCD MISC PARTS
(LCD latch (L,R), Spring, Brightness/Contrast knob for 12.1"/13.3", Brightness/Contrast knob for 14.1", LCD bracket for 13.3" only)

05K5488

9

LCD FPC ASM (13.3" TFT)

05K2763

10

LCD REAR COVER ASM (13.3" TFT)

05K6207

11

HINGE CAP L,R (12.1"/13.3")

05K5466

12

HINGE L,R (12.1"/13.3")

05K5465

13

LVDS BOARD ASM (13.3"/14.1")

10L1208

14

LCD FPC STOPPER TAPE

05K5914

LG/IBM Logo Kit

05K6044

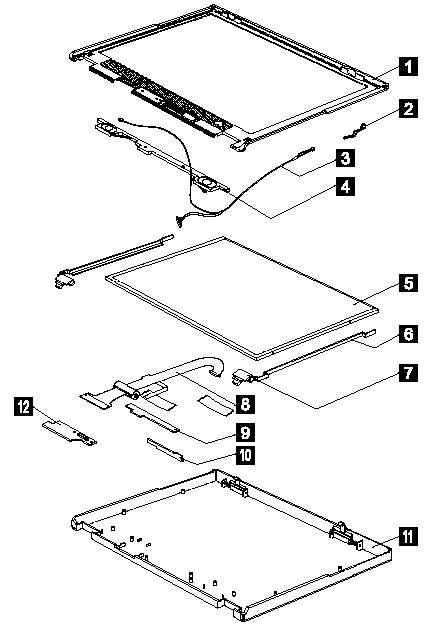

14.1" LCD ASM Parts Listing

Index

System Unit

FRU Number

1

LCD BEZEL ASM (14.1" TFT)

05K5945

2

MICROPHONE ASM W/ HOLDER

05K5477

3

CABLE ASM FOR SPK/MIC/VR BOARD

05K2818

4

SPEAKER ASM (14.1")

02K4869

5

LCD PANEL ASM (14.1" TFT)

05K9396

6

HINGE L,R (14.1")

05K5947

7

HINGE CAP L,R (14.1")

05K5948

8

LCD FPC ASM (14.1" TFT)

22L1899

9

LCD INVERTER (14.1" TFT)

10L1202

10

VR BOARD ASM (14.1"/13.3")

10L1310

11

LCD REAR COVER ASM (14.1" TFT)

05K6208

12

LVDS BOARD ASM (13.3"/14.1")

10L1208

13

LCD FPC STOPPER TAPE

05K5914

LCD MISC PARTS
(LCD latch (L,R), Spring, Brightness/Contrast knob for 12.1"/13.3", Brightness/Contrast knob for 14.1", LCD bracket for 13.3" only)

05K5488

LG/IBM Logo Kit

05K6044
