Service Hints & Tips |
Document ID: BMOE-42EH2S |
TP 390,390E,1720 - Hard Disk Adapter Combo Bay ASM Removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
To remove the second hard disk drive from the hard disk drive adapter:

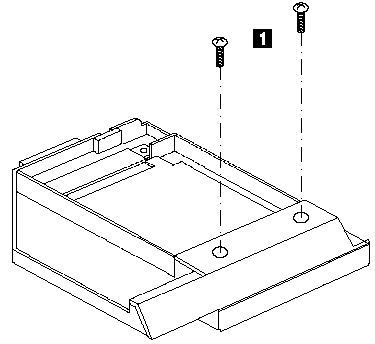

1. Remove the two screws of the Combo Bay adapter.

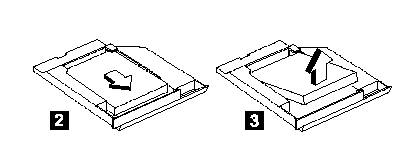

2. Slide the hard disk drive out and up to remove.
|
Step |
Size (Quantity) |
Head & |
Torque |
|
1 |
M3 x 5L (2) |
Pan head, |
1.6 kgf-cm |
|
Search Keywords |
| |
|
Hint Category |
Hardware Installation/Configuration | |
|
Date Created |
20-11-98 | |
|
Last Updated |
23-03-99 | |
|
Revision Date |
23-03-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 390, ThinkPad i Series 172x | |
|
Machine Type |
2626, 2627 | |
|
Model |
Various | |
|
