Service Hints & Tips |
Document ID: RJJR-3PGRJM |
TP 765 - 1090 Front IR
Applicable to: World-Wide
1090 Front IR
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Top Cover (1060)
Keyboard Unit (1070)
Hard Disk Drive (1040)
LCD Unit (1080)

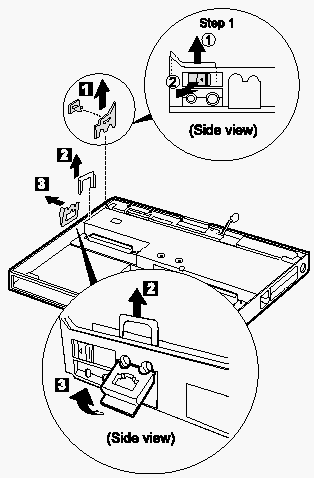

Note: In step 1, lift the switch cover halfway up (1 );
then pull the switch lever out to remove(2 ).
Note:

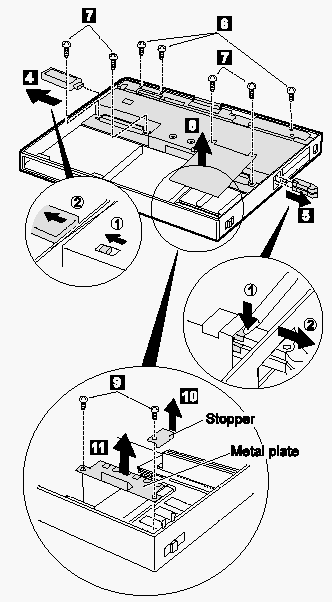

1. Step 4 is 765D-unique. For 765L, skip this step.
2. In step 5 , push the levers gently to avoid flexing them..
|
Step |
Size (quantity) |
Memo (torque) |
|
6 |
M2.5 x 6 mm (3) |
Nylon coating (4 kgcm) |
|
7 |
M2.5 x 8 mm (4) |
Nylon coating (4 kgcm) |
|
9 |
M2.5 x 4 mm (2) |
Nylon coating (4 kgcm) |
12. Move the front IR unit slightly to disconnect the DIMM adapter card connector.
Note:
Raise the system board assembly slightly 13 to disconnect the DIMM adapter card in step 14 ;
then remove the DIMM adapter card. Be careful not to damage the IR flexible cable under the DIMM adapter card.
Then remove the IR flexible cable in step 15 .
|
