Parts Information |
Document ID: LWIK-3ZVLSQ |
TP 600E - FRU parts listing
Applicable to: World-Wide
|

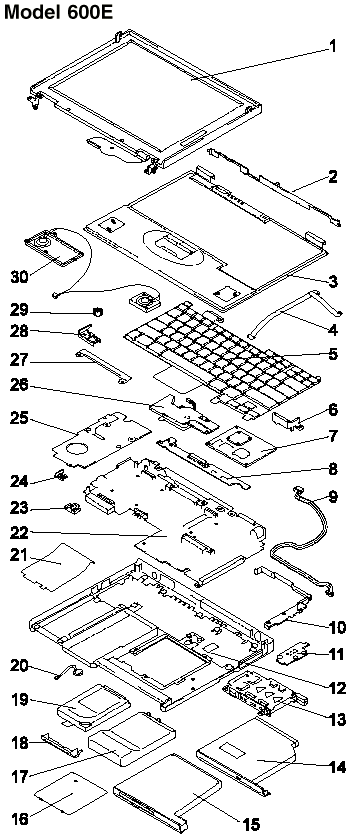

Index |
System Unit |
|
|
1 |
LCD Assembly (see LCD FRU (TFT)) |
|
|
2 |
Center Cover (see misc. parts) |
see below |
|
3 |
Keyboard Bezel |
05K5856 |
|
4 |
Speaker and microphone cable (see Speaker) |
see below |
|
5 |
Keyboard (see Keyboard) |
|
|
6 |
Holder for CPU Card (see misc. parts) |
see below |
|
7 |
CPU Card (MMX 233 MHz) |
12J0408 |
|
|
CPU Card (Pentium II 300 MHz, AGP) |
10L0907 |
|
8 |
Sub Card 2 |
10L1193 |
|
9 |
Mic. Cable (see misc. parts - this is a flexible, twisted-wire cable) |
see below |
|
10 |
Guide Rail 2 (see misc. parts) |
see below |
|
11 |
TV Out Card |
10L1192 |
|
12 |
Base Cover |
05K5849 |
|
|
for China |
05K5851 |
|
|
for Taiwan |
05K5852 |
|
13 |
PC Card Slot |
05K4790 |
|
14 |
DVD Drive |
05K8971 |
|
15 |
Diskette Drive |
05K8874 |
|
16 |
DIMM Cover |
05K7064 |
|
17 |
Battery Pack |
02K7018 |
|
18 |
Hard Disk Drive Cover, Coin Screw |
05K5995 |
|
19 |
Hard Disk Drive (6.4 GB) |
83H7103 |
|
|
Hard Disk Shield |
05K4752 |
|
20 |
Backup Battery |
02K6502 |
|
21 |
Insulator for Modem (see misc. parts) |
see below |
|
22 |
System Board (13.3 AGP model) |
10L1191 |
|
23 |
Backup Battery Holder |
05K4827 |
|
24 |
Power Switch Knob (see misc. parts) |
see below |
|
25 |
Modem Card |
05K3469 |
|
26 |
Fan 2 |
05K5570 |
|
27 |
Keyboard Bracket (see misc. parts) |
see below |
|
28 |
Bracket for Keyboard Corner (see misc. parts) |
see below |
|
29 |
TrackPoint Cap |
|
|
30 |
Speaker (includes speaker and microphone cable which is a flat, L shaped ribbon cable) |
02K4861 |
|
|
Telephone Cable |
05K2707 |
|
|
Video Cable |
05K2821 |
|
|
External FDD Cover |
05K2643 |
|
|
HDD Bracket |
05K4752 |
|
|
Blank Bay |
05K4842 |
|
|
CD-ROM Carrying Case |
05K4843 |
|
|
AC Adapter (56 W) |
|
|
|
2-pin |
11J8974 |
|
|
2-pin |
02K6497 |
|
|
3-pin |
02K7007 |
|
|
3-pin |
02K7011 |
|
|
Doors |
05K4828 |
|
|
FDD |
|
|
|
I/O Right |
|
|
|
I/O Left |
|
|
|
USB |
|
|
|
Miscellaneous Parts for Base Cover |
05K4827 |
|
|
System Miscellaneous Parts |
05K5854 |
|
|
Center Cover |
|
|
|
Guide Rail |
|
|
|
Insulator for Modem |
|
|
|
Insulator for Bay |
|
|
|
Speaker and Microphone Cable 2 |
|
|
|
Holder for CPU Card |
|
|
|
Power Switch |
|
|
|
Latch for Keyboard Bezel |
|
|
|
Bracket for Keyboard |
|
|
|
Bracket for Blind Corner |
|
|
|
Bracket for Keyboard Corner |
|
|
|
Planar Miscellaneous Parts |
05K5853 |
|
|
I/O Plate |
|
|
|
Hex Stud for Bus |
|
|
|
Hex Stud for D-Sub |
|
|
|
FDD/Audio Cover |
|
|
|
USB Plate |
|
|
|
Holder Sub Card |
|
|
|
Insulator Planar Battery |
|
|
|
Insulator Planar Bay 2 |
|
|
|
Insulator Planar Fuse |
|
|
Country |
PSTN cable |
Wall connector |
|
Austria |
05K2658 |
|
|
Belgium |
05K2627 |
|
|
Denmark |
12J6363 |
08H3344 |
|
Finland |
12J6363 |
08H3345 |
|
France |
12J6363 |
08H3346 |
|
Germany |
12J6363 |
01K1173 |
|
Israel |
80G3516 |
|
|
Italy |
12J6363 |
08H3349 |
|
Netherlands |
12J6363 |
08H3352 |
|
Norway |
12J6363 |
08H3345 |
|
Portugal |
12J6363 |
60H6029 |
|
Spain |
12J6363 |
|
|
Sweden |
12J6363 |
08H3353 |
|
Switzerland |
12J6363 |
08H3354 |
|
Turkey |
12J6363 |
|
|
UK |
12J6363 |
08H3348 |
To view the keyboard and miscellaneous FRU parts list, click here (
).
|
