Parts Information

Document ID: AGRN-45LRCX

TP 365X/XD - Common option FRU parts list

Applicable to: World-Wide

Miscellaneous Parts

Screw Kit
Includes (Type) (Quantity):
M2 x 4 (Bind Head) (15)
M2 x 5 (Pan Head) (11)
M2 x 4 with washer (Pan Head) (2)
M2 x 8 (Pan Head) (2)
M2.5 x 4 (Bind Head) (4)
M2.5 x 3 (3.5D Pan Head) (2)
M2.5 x 4 with washer (Bind Head) (3)
M3 x 3 (Cross Slotted Pan Head) (4)
M3 x 4 (Pan Head) (2)
M3 x 4 (Flat Head) (4)
M3 x 6 (Pan Head) (6)
M3 x 6 with washer (Pan Head) (2)
Hex Stud M2.5 Short length (6)
Screw ST2.9 x 4.5 (Pan Head) (1)
M2 x 5 (Bind Head) (4)
M2 x 5 (Cross Slotted Pan Head) (2)
M3 x 5 (Pan Head) (6)

74H0229


Options
Notes:
1. When you replace the AC Adapter with a new one,
use the one for the country where the computer is
used, even if the computer is from different country.
2. The warranty for the system unit does not apply to all
options.

720MB Hard Disk Drive Assembly

85G8371

810MB Hard Disk Drive Assembly

39H2220

810MB Hard Disk Drive Assembly

07H0392

1.08GB Hard Disk Drive Assembly

39H2221

1.35GB Hard Disk Drive Assembly

73H6419

2.1GB Hard Disk Drive Assembly

73H6427

AC Adapter
35W Universal
35W Japan only

85G6698 85G6700

Slim AC Adapter
3 Prong
2 Prong

85G6736 85G6738

Port Replicator Base Assembly

41H7457

Port Replicator Cable Cover

41H7458

Mini Replicator Assembly

75H7528

DIMM 8MB

42H2767

DIMM 16MB

42H2768

DIMM 32MB

42H2769

External Diskette Drive (2 mode)

10H4056

External Diskette Drive (3 mode-Japan)

10H4055

External Diskette Drive Cable

74H0219

Battery Pack

41H7438

CD-ROM Drive (x4 speed)

69H7925

CD-ROM Drive (x6 speed)

82H8160

CD-ROM Drive (x8 speed)

82H8173


Numeric Keypad

Belgian

95F5741

Canadian French

95F5466

Danish

95F5467

Dutch

95F5467

French

95F6313

German

95F6314

Greek

95F5467

Hebrew

95F5741

Icelandic

95F5467

Italian

95F6316

Japanese

79F6401

Norwegian

95F5467

Spanish

95F6315

Swedish / Finnish

95F5468

Swiss / French

95F5711

Swiss / German

95F5715

Turkish

95F5467

U.K. English

95F5741

U.S. English

95F5741


Black Keypad

French

84G6286

German

84G6280

Italian

84G6292

Swedish

84G6304

U.K. English

84G6298

Norway

84G6310

U.S. English

84G2530


Black Keyboard

French

84G6285

German

84G6279

Italian

84G6291

Swedish

84G6303

U.K. English

84G6297

Norway

84G6309

U.S. English

84G2529


Accessories

Keyboard/Mouse Cable

54G0444


Tools

Tri-Connector Wrap Plug

72X8546

PC Test Card

35G4703

Screwdriver Kit

95F3598

ThinkPad 750Ce Hardware Maintenance Diskette
(This diskette is used for365X and 365XD also.)

82G3891

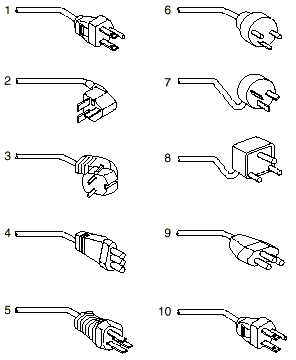

Power Cords


Warning:
Use the power cord certified for your country.

1

Colombia, U.S., Venezuela

25H2207

Japan, 2-pin

85G6665

2

Hong Kong, Singapore, U.K.

25H2215

3

France, Germany, Spain

25H2209

4

Italy

25H2223

5

Australia, New Zealand

25H2205

6

Denmark

25H2211

7

Israel

25H2225

8

Bangladesh, Pakistan,
Sri Lanka,South Africa

25H2213

9

Switzerland

25H2221

10

Thailand

25H2219
