Service Hints & Tips

Document ID: GSMH-3EQDAK

TP 365X/XD - 1060 Top Cover

Applicable to: World-Wide

1060 Top Cover:

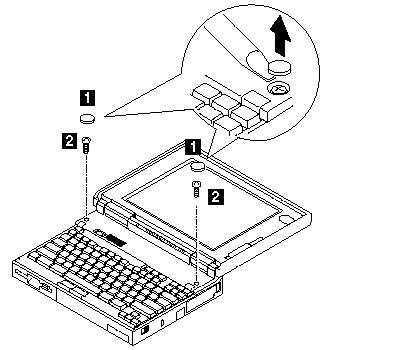

Battery Pack (1020)

Step	Screw Location (Quantity)	Length
2	Top Cover (2)	M2 x 5 mm

Note: Make sure you use the correct screws when replacing.

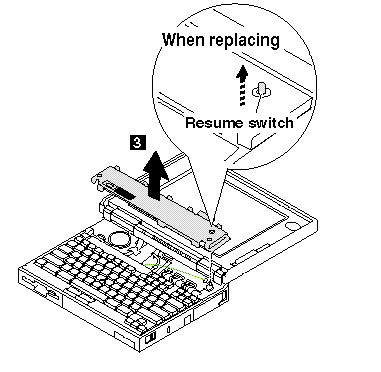

Note: When replacing the top cover, be careful not to damage the resume switch. Ensure that the resume switch extends through the hole, as shown in the figure.

	Search Keywords
	Hint Category	Hardware Maintenance Information
	Date Created	28-02-97
	Last Updated	19-08-98
	Revision Date	18-08-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad 365X/XD
	Machine Type	2625
	Model	Various
