Service Hints & Tips |
Document ID: DSHY-3PVTHT |
TP Selectadock III - Locations
Applicable to: World-Wide
Locations:
Front View:
|
1 |
Multiuser lock |
|
2 |
PC Card lock |
|
3 |
Port replicator lock |
|
4 |
Docking guide |
|
5 |
Device space |
|
6 |
Status indicators |
|
7 |
Device eject button |
|
8 |
UltraBay II |
|
9 |
UltraBay II tray |
|
10 |
UltraBay II Latch |
|
11 |
Compulock lock hole |
|
12 |
Expansion connector |

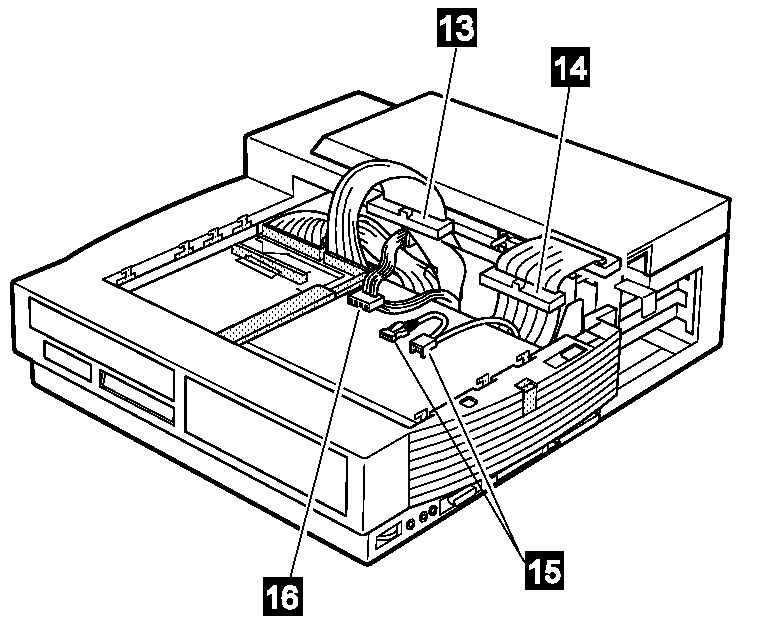

Front View (continue):
|
13 |
IDE connector |
|
14 |
Internal SCSI connector |
|
15 |
Audio device connector |
|
16 |
Power supply connector |

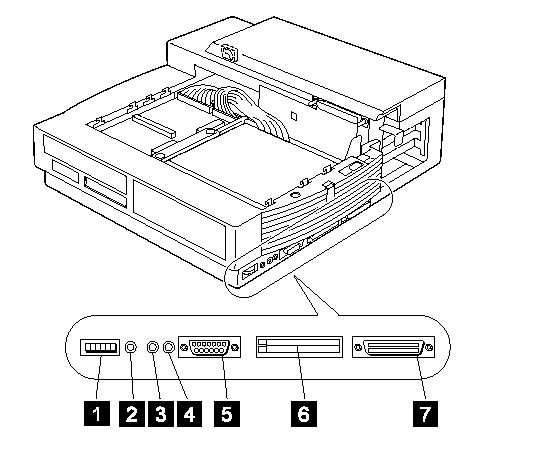

Side View:
|
1 |
Volume knob |
|
2 |
Headphone jack |
|
3 |
Line-out jack |
|
4 |
Speaker-in jack |
|
5 |
MIDI/joystick port |
|
6 |
PC Card (PCMCIA) slots |
|
7 |
SCSI connector |

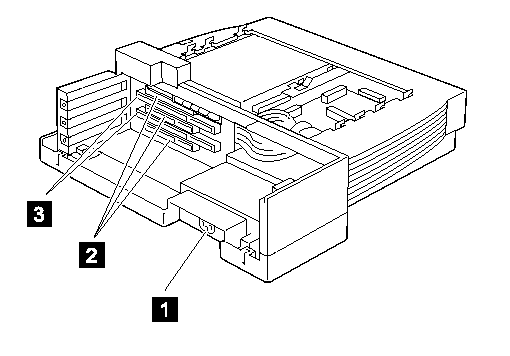

Rear View:
|
1 |
Power jack |
|
2 |
PCI connector |
|
3 |
ISA connector |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
22-01-97 | |
|
Last Updated |
17-04-98 | |
|
Revision Date |
08-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad Docking Stations | |
|
Machine Type |
3547 | |
|
Model |
003 | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
