PC Server 704 - System Parts Listing

67.464 bytes

Parts Information

Document ID: DDSE-469MD9

PC Server 704 - System Parts Listing

Applicable to: World-Wide

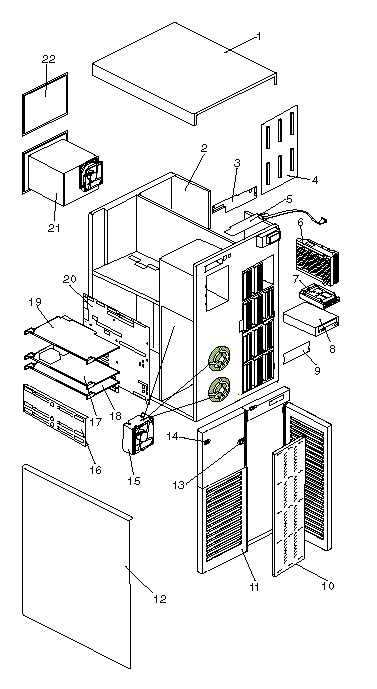

Index

System (PC Server 704 - Type 8650)

FRU. No.

1

Cover Assembly, Top
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9017

2

Chassis Assembly (Base Frame)
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9013

3

Front Panel Control Board
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9033

4

Hot-Swap Backplane
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9099

5

SCSI Drive Status LED Board with cable (Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9035

6

Carrier Assembly, Hard Disk Drive
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9031

7

1.44 MB Diskette Drive
(Models 4BW, 4M0, 7AX)

75H9037

7

1.44 MB Diskette Drive
(Models 5M0, 6MM)

12J3344

8

4 X CD-ROM SCSI Drive
(Models 4BW, 4M0, 7AX)

75H9068

8

8 X CD-ROM Drive
(Models 5M0, 6MM)

12J3340

9

Filler, EMI Panel, for 5.25-inch Drive Bay (Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9090

10

Door, Hot-Swap Drive
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9103

11

Cover Assembly, Front Bezel
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9109

12

Cover Assembly, Side
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9015

13

Lock Assembly
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9072

14

IBM Logo
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9107

15

Fan Assembly with cable
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9063

16

Card Guide
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9082

17

P6 166/66 MHz 512K Processor Board, without Processor
(Models 4BW, 7AX)

75H9005

17

P6 Processor Board, without Processor (Models 4M0)

76H4887

17

P6 Processor Board, without Processor (Models 5M0, 6MM)

12J3480 *

18

P6 166/66 MHz 512K Processor Board, without Processor
(Models 4BW, 7AX)

75H9005

18

P6 Processor Board, without Processor (Models 4M0)

76H4887

P6 166MHz 512K Processor
(Models 4BW, 7AX)

75H9109

P6 Heat Sink (with Clips and Grease)
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9661

P6-200MHz Processor
(Models 4M0, 5M0, 6MM)

76H4889

19

Memory Board (without memory)
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9003

20

System Board
(Models 4BW, 4M0, 7AX)

75H8018

20

System Board
(Models 5M0, 6MM)

12J3338

21

420W Auto-Sense Power Supply
(Models 4BW, 4M0,7AX)

75H9066

21

420W Hot-Swap Power Supply
(Models 5M0, 6MM)

12J3342

22

Power Distribution Board
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9007

23

Power Supply Filler Panel
(Models 4BW, 4M0, 5M0, 7AX)

75H9097

100/10 PCI Ethernet Network Adapter
(Models 4BW, 7AX)

25H4383

16MB 70NS 72-Pin DRAM SIMM (Tin Lead) (Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9004

32MB 70NS 72-Pin DRAM SIMM (Tin Lead) (Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9124

64MB 70NS 72-Pin DRAM SIMM (Tin Lead) (Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9125

128MB ECC SIMM
(Models 4M0, 5M0, 6MM)

76H4896

2.14 GB SCSI Hard Disk Drive
(Models 4BW, 7AX)

subs p/n 75H9010 to 12J4732 for M/T 8650

2.17 GB SCSI Hard Disk Drive
(Models 5M0, 6MM)

12J4732

2.25 GB SCSI Hard Disk Drive
(Models 5M0, 6MM)

76H7242

4.36 GB SCSI Hard Disk Drive
(Models 5M0, 6MM)

12J4734

4.5 GB SCSI Hard Disk Drive
(Models 4M0)

76H4898

4.5 GB SCSI Hard Disk Drive
(Models 6MM)

76H7243

4.5 GB SCSI Hard Disk Drive
(Models 5M0, 6MM)

76H5817

4.5 GB Ultra SCSI Hard Disk Drive
(Models 6MM)

00K7915

4.5 GB Ultra SCSI Hard Disk Drive
(Models 6MM)

00K7931

9.1 GB SCSI Hard Disk Drive
(Models 5M0, 6MM)

76H5818

9.1 GB SCSI Hard Disk Drive
(Models 5M0, 6MM)

76H7244

B1 Module Plug (Plugs into connector J8G1 on the system board)
(Models 4M0, 4BW, 7AX)

12J4649

Bracket, Diskette Drive
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9093

Bracket, Extraction, Front
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H90086

Bracket, Extraction, Rear
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9088

Cover, Power Distribution Board
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9101

Fan Guard
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9080

Fan Housing
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9065

Foot, Frame
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9084

Kit, 5.25-Inch Rails
(Models 4BW, 4M0, 5M0, 6MM, 7AX)
Ground Clips
Rails (4 each)

75H9070

Kit, Mechanical Accessories
(Models 4BW, 4M0, 5M0, 6MM, 7AX)
Fan Connector Assembly
I/O Adapter Assembly
Support Module 3x
System Board Mounting Cips
System Board Support

75H9076

LCD Board Assembly
(Models 4BW, 4M0, 5M0, 6MM, 7AX)

75H9095

Light Pipes, for Front Bezel
(Models 4M0, 5M0, 6MM)

76H0985

Mouse
(Models 5M0, 6MM)

06H4595

PCI RAID Controller Board
(Models 4M0, 7AX)
(See "Battery Notice (Nickel Cadmium). The controller is shipped with the backup battery jumper set to disable. The jumper must be set to enable before configuring the system. Refer to the Mylex booklets for instructions.)

75H9011

PCI RAID Controller Board
(Models 6MM)
(See "Battery Notice (Nickel Cadmium). The controller is shipped with the backup battery jumper set to disable. The jumper must be set to enable before configuring the system. Refer to the Mylex booklets for instructions.)

76H6875

Real-Time Module with Battery
(Models 4BW, 4M0, 5M0, 6MM, 7AX)
(See "Battery Notice (Nickel Cadmium). The controller is shipped with the backup battery jumper set to disable. The jumper must be set to enable before configuring the system. Refer to the Mylex booklets for instructions.)

75H9105

ServeRAID Adapter

06H9334

Search Keywords

Document Category

Service Parts

Date Created

23-03-99

Last Updated

23-03-99

Revision Date

23-03-2000

Brand

IBM PC Server

Product Family

PC Server 704

Machine Type

8650

Model

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes
