Service Hints & Tips |
Document ID: JWOE-3KXLAR |
Aptiva - 2142 Zip Drive jumper settings
Applicable to: United States, Canada, Japan, Italy, United Kingdom, France, Germany, China, Hong Kong, Denmark, Spain, Netherlands, Sweden, Norway, Australia, Finland
The factory installed Zip 100 ATAPI drive is connected to the system board secondary drive connector. The Zip Drive is a direct access storage device that features removable media having a formatted capacity of 100 MB.

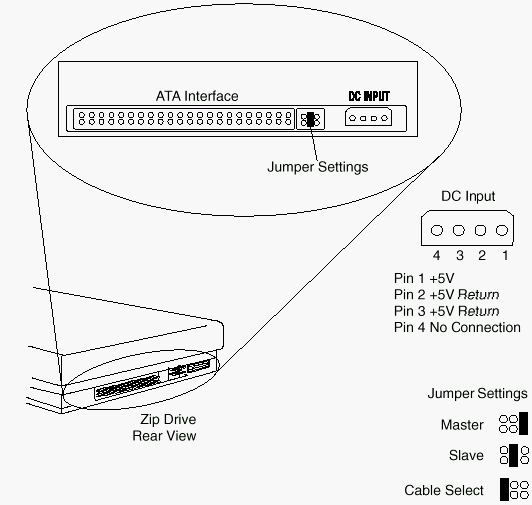

The Zip Drive jumper is set as the slave drive, as shown in Figure 5-12.
Figure 5-12. Zip Drive Jumper Settings
|
