PS/2 8590 / Server 95 - 33/66 MHZ processor IML failure (01293000 error)
Applicable to: AP-S, Canada, LA, United States
Source: RETAIN tip H103898
Abstract: 33/66 MHZ PROCESSOR IML FAILURE (01293000 ERROR)
A POST error code of 01293000 may be experienced if a jumper is mis-located.
There is a three pin jumper at location J4 of the 33/66 MHZ processor board (FRU P/N92F0145), which is used in the 8590 and 8595 systems. This jumper is preset at the factory and is required to enable IML (Initial machine load).
THIS JUMPER SHOULD NOT BE REMOVED OR REPOSITIONED.

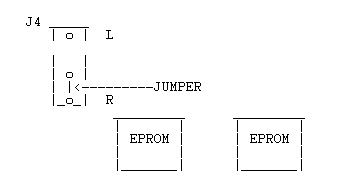

In case the jumper is missing or incorrectly positioned, it must be replaced between the center pin and R, as shown below:
SAS KEYWORDS:
PSY2, PS2, PS/2, PERSYS, D/T8595, D/T9595, BOOT, PSY2ERR
|
