Service Hints & Tips |
Document ID: MNOK-42RK4A |
Aptiva - 2168/2176 Removals and replacements - 3.5 Inch drives
Applicable to: World-Wide
2020 - 3.5-In. Bays
- Disconnect any cables on the drive.
- Remove the screws.
- Pull out the diskette drive.

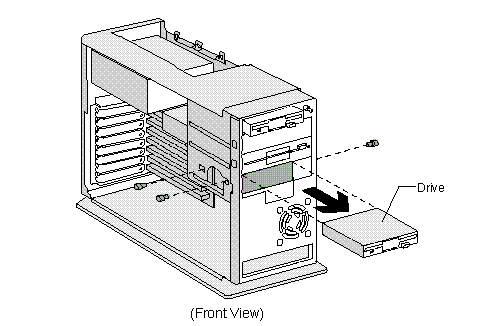

Figure 1-24. Bay 1 (3.5-In.)

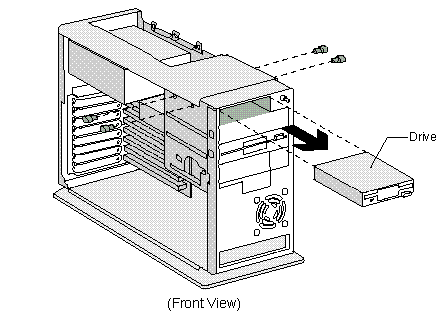

Figure 1-25. Bay 4 (3.5-In.)
|
