PC Server 320 - Input / Output Connectors
Applicable to: World-Wide
Input/Output Connectors
Keywords:

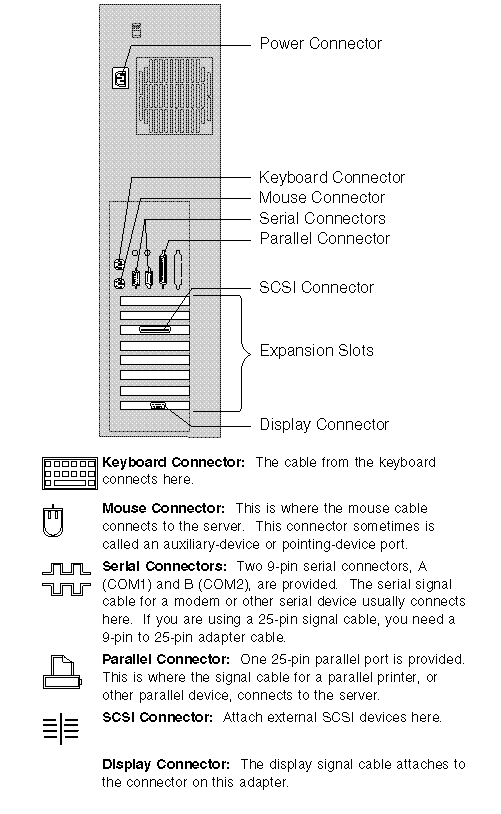

Keyboard Connector:
The cable from the keyboard connects here.
Mouse Connector:
This is where the mouse cable connects to the server. This connector sometimes is called an auxiliary-device or pointing-device port.
Serial Connectors:
Two 9-pin serial connectors, A (COM1) and B (COM2), are provided. The serial signal cable for a modem or other serial device usually connects here. If you are using a 25-pin signal cable, you need a 9-pin to 25-pin adapter cable.
Parallel Connector:
One 25-pin parallel port is provided. This is where the signal cable for a parallel printer, or other parallel device, connects to the server.
SCSI Connector:
Attach external SCSI devices here.
Display Connector:
The display signal cable attaches to the connector on this adapter.
|
