Document ID: DDSE-452JSQ |
PC Server 315 - Extended Memory Test
Applicable to: World-Wide
To run the extended memory test, do the following:
1. Insert the PC Server 315 Extended Memory Diagnostic diskette in drive A.
2. Reboot the server (press CTRL+ALT+DEL).

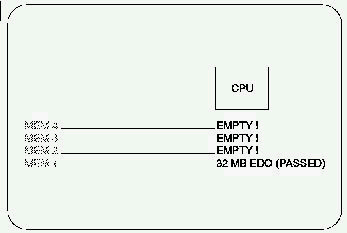

The following is an example of how the DIMMs being tested are displayed on the screen. The test runs automatically with good DIMMs highlighted in green as PASSED and non-functional DIMMs highlighted in red as FAILED.
Note:
The reference designators shown on the left of the screen in the following diagram (MEM1, MEM2, etc.) indicate the failing memory socket and are not displayed on the actual diagnostic screen.
3. Refer to the graphic on the screen to determine if the DIMMs passed or failed the extended memory test. To locate the memory socket positions on the system board, see "System Board."
|
