TP 380,385 - DIMM card/backup battery diagram
Applicable to: World-Wide
1020 DIMM Card / Backup Battery
The lithium battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100Ï C (212Ï F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.
1. Turn the computer upside down.

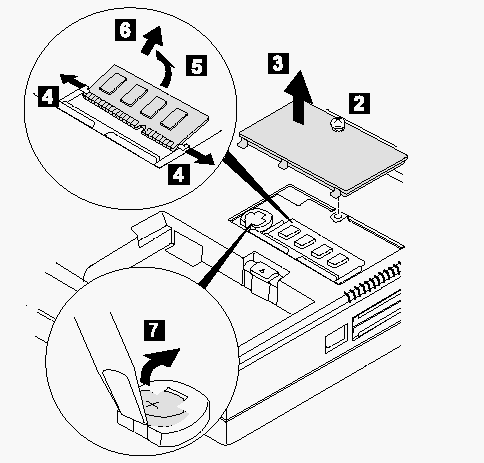

2 3 4 5 6 : DIMM
2 3 7 : Backup battery
When replacing:
Make sure the plus side is on top when replacing the backup battery.
|
Step |
Location (Quantity) |
Length |
|
2 |
DIMM cover (1) | |
|
Note: Only loosen the screw in step2. |
|
