Parts Information |
Document ID: JWOE-3L5FZD |
Aptiva - 2134/2176 CD-ROM drive, Mwave, sound, TV, and modem FRU parts
Applicable to: World-Wide

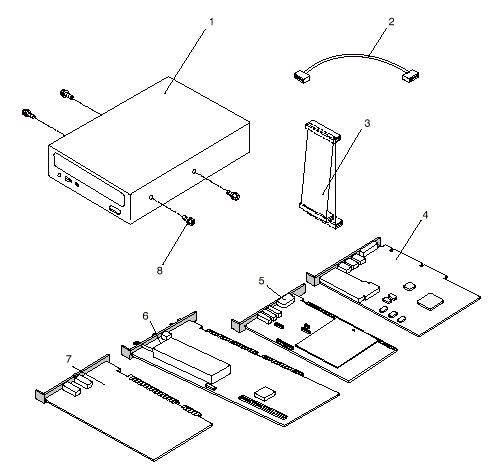

Assembly 6: CD-ROM, Mwave, Sound, TV, and Modem Cards
|
Asm - Index |
Part Number |
Units |
Description |
|
6-1 |
75H9601 |
1 |
CD-ROM Drive (6X) |
|
-1 |
75H9748 |
1 |
CD-ROM Drive (8X) |
|
-2 |
10H2924 |
1 |
CD-ROM Drive Audio Cable |
|
-3 |
60G2254 |
1 |
CD-ROM/Hard Disk Cable |
|
-3 |
75H8905 |
1 |
Diskette Drive Cable |
|
-NS |
06H5743 |
1 |
Hard Disk/CD-ROM Bracket (2134 Only) |
|
-4 |
38H6789 |
1 |
Mwave Adapter Card (Australia) |
|
-4 |
41H9626 |
1 |
Mwave Adapter Card (Austria) |
|
-4 |
55H6504 |
1 |
Mwave Adapter Card (Belgium) |
|
-4 |
41H9619 |
1 |
Mwave Adapter Card (Denmark) |
|
-4 |
55H8432 |
1 |
Mwave Adapter Card (Eire) |
|
-4 |
55H6500 |
1 |
Mwave Adapter Card (Finland) |
|
-4 |
38H6785 |
1 |
Mwave Adapter Card (France) |
|
-4 |
38H6787 |
1 |
Mwave Adapter Card (Germany) |
|
-4 |
38H6793 |
1 |
Mwave Adapter Card (Italy) |
|
-4 |
55H8432 |
1 |
Mwave Adapter Card (Irish) |
|
-4 |
42H4852 |
1 |
Mwave Adapter Card (Japan) |
|
-4 |
42H0856 |
1 |
Mwave Adapter Card (NonU.S./Canada) |
|
-4 |
41H9629 |
1 |
Mwave Adapter Card (Netherlands) |
|
-4 |
41H9632 |
1 |
Mwave Adapter Card (NewZealand) |
|
-4 |
42H4864 |
1 |
Mwave Adapter Card (Norway) |
|
-4 |
55H6502 |
1 |
Mwave Adapter Card (Portugal) |
|
-4 |
38H6791 |
1 |
Mwave Adapter Card (Spain) |
|
-4 |
41H9616 |
1 |
Mwave Adapter Card (Sweden) |
|
-4 |
41H9622 |
1 |
Mwave Adapter Card (Switzerland) |
|
-4 |
38H6795 |
1 |
Mwave Adapter Card (U.K.) |
|
-4 |
55H7419 |
1 |
Mwave Adapter Card (U.S.,Canada) |
|
-4 |
75H9986 |
1 |
Mwave Adapter Card (U.S.,Canada) |
|
-NS |
41H7819 |
1 |
Wake Up On Ring Cable |
|
-NS |
41H7820 |
1 |
Mwave Modem Splitter (NonEMEA) |
|
-5 |
60H6111 |
1 |
Soundcard |
|
-6 |
07H1032 |
1 |
TVcard |
|
-NS |
76H3636 |
1 |
Signal Cable (2134 Only) |
|
-NS |
07H0977 |
1 |
Signal Cable (2176 Only) |
|
-NS |
07H1496 |
1 |
Audio Cable |
|
-NS |
75H8960 |
1 |
Remote Emitter |
|
-NS |
75H8958 |
1 |
Remote Receiver |
|
-NS |
07H1030 |
1 |
Conference Card |
|
-NS |
07H0977 |
1 |
Ribbon Cable, Conference Card |
|
-NS |
76H1593 |
1 |
Camera Assembly w/Camera Cable |
|
-NS |
76H1595 |
1 |
Camera Cable |
|
-7 |
76H1597 |
1 |
Modem Card, 28.8KbpsDSVD |
|
-NS |
76H1617 |
1 |
Modem/Audio Cable |
|
-NS |
43G3398 |
1 |
Modem Cable (EMEA) |
|
-NS |
60H6045 |
1 |
Telephone Adapter (Austria) |
|
-NS |
60H6046 |
1 |
Telephone Adapter (Belgium) |
|
-NS |
60H6047 |
1 |
Telephone Adapter (Denmark) |
|
-NS |
60H6043 |
1 |
Telephone Adapter (Eire) |
|
-NS |
60H6048 |
1 |
Telephone Adapter (Finland) |
|
-NS |
60H6049 |
1 |
Telephone Adapter (France) |
|
-NS |
60H6050 |
1 |
Telephone Adapter (Germany) |
|
-NS |
60H6052 |
1 |
Telephone Adapter (Italy) |
|
-NS |
60H6053 |
1 |
Telephone Adapter (Netherlands) |
|
-NS |
60H6048 |
1 |
Telephone Adapter (Norway) |
|
-NS |
60H6047 |
1 |
Telephone Adapter (Portugal) |
|
-NS |
60H6043 |
1 |
Telephone Adapter (Spain) |
|
-NS |
60H6054 |
1 |
Telephone Adapter (Sweden) |
|
-NS |
60H6055 |
1 |
Telephone Adapter (Switzerland) |
|
-NS |
60H6051 |
1 |
Telephone Adapter (UK) |
|
-NS |
76H0046 |
1 |
Speaker Audio Cable |
|
-NS |
75H9292 |
1 |
Internal Speaker Cable |
|
-NS |
76H1688 |
2 |
Cable (Woofer) |
|
-NS |
07H1686 |
1 |
DC Power Cable, Speaker |
|
-NS |
07H1627 |
2 |
Speaker, Model10 |
|
-NS |
76H1686 |
2 |
Speaker Grill, Model10 |
|
-NS |
07H1629 |
2 |
Speaker, Model20 |
|
-NS |
76H1684 |
2 |
Speaker Grill, Model20 |
|
-NS |
07H1680 |
2 |
Speaker, Sub-Woofer (U.S.,Canada) |
|
-NS |
07H1682 |
2 |
Speaker, Sub-Woofer (EMEA) |
|
-NS |
07H1684 |
2 |
Speaker, Sub-Woofer (Japan) |
|
-NS |
04H6905 |
2 |
Sub-Woofer A.C. Power Cable (UK) |
|
-NS |
04H6906 |
2 |
Sub-Woofer A.C. Power Cable (Europe) |
|
-NS |
76H1572 |
1 |
Joystick |
|
-NS |
60G2272 |
1 |
Microphone |
|
-8 |
93F0041 |
1 |
Packet (Mounting Screws) |
|
Search Keywords |
CD-ROM, IBM Adapter Cards | |
|
Document Category |
Service Parts | |
|
Date Created |
20-08-97 | |
|
Last Updated |
07-04-99 | |
|
Revision Date |
07-04-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2134, 2176 | |
|
Model |
All | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
